APG Enceinte 2 voies coax, 30cmNd/HF1"Nd, filtrage passif, 400W
Garantie 2 ans
- Rapport taille /puissance
- Clarté et définition sonore
- Recul au larsen maîtisé Ergonomie
APG Enceinte 2 voies coax, 30cmNd/HF1"Nd, filtrage passif, 400W
- 1 x APG Enceinte 2 voies coax, 30cmNd/HF1"Nd, filtrage passif, 400W
APG Enceinte 2 voies coax, 30cmNd/HF1"Nd, filtrage passif, 400W
The DX12 uses coaxial technology to create a perfectly coherent sound field over a 90° conical aperture. Passive crossover is designed to manage speaker phasing and achieve linear amplitude and phase responses, while keeping distortion to a minimum.

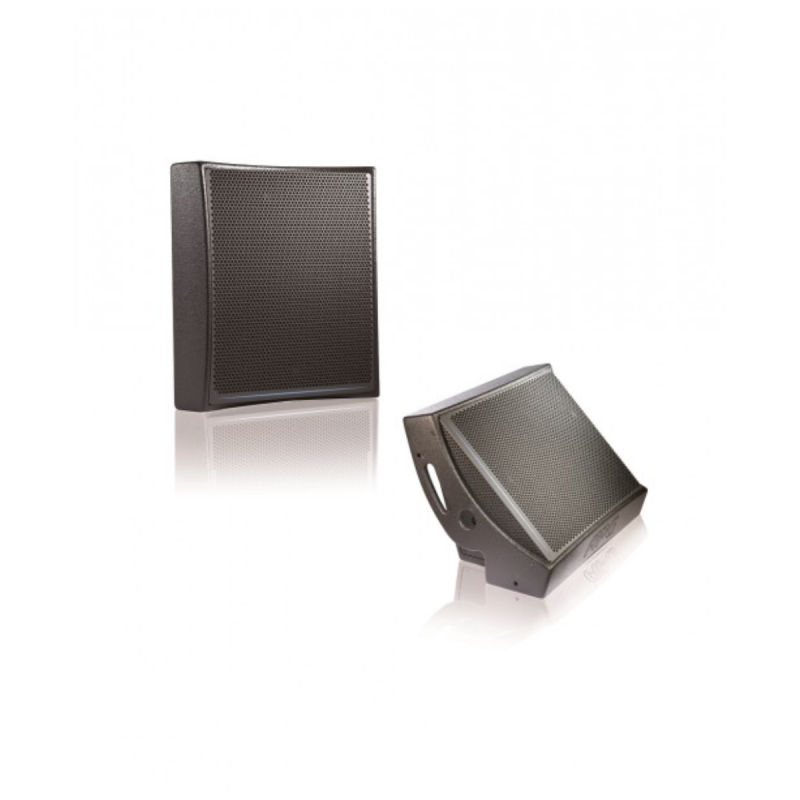

The speaker's original construction naturally features two sides at 30° and 45°, as well as two side blanks in which all ergonomic functions are integrated: two handles for easy gripping and handling of the speaker in any position, protected connectors, stand base and receptacle for hanging options. The 12ATP90 option includes an indexing plate for angle adjustment with the ETDX12 bracket, concealed in the blanks. The QFS4 option includes 4 fittings for fast, secure attachment using screws or ball pins.
Bande fréquentielle d'utilisation (± 10 dB) : 50 Hz - 20 kHz
SPL max à 1m : 136 dB SPL (1)
Directivité nominale (H° x V°) : 90° x 90° (2)
Impédance nominale : 8 ohms
Puissance AES (W) : 400 W (3)
Puissance admissible maximale (W) : 1600 W (4)
Dimensions H,L,P (mm) : 520 x 495 x 265 mm
Poids (kg) : 19 kg
Connecteurs : 2 x Speakon NL4MP (5)
IP : 43
