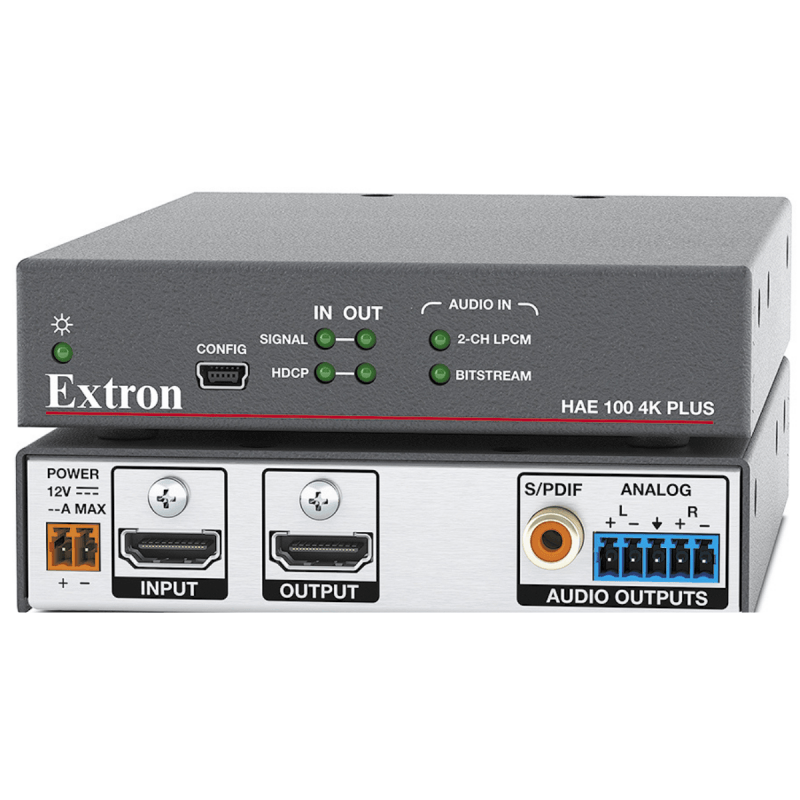

Extron 4K/60 HDMI Audio De-Embedder

Video

HDMI input

• Maximum data rate : 18 Gbps (6 Gbps per color)
• Maximum pixel clock : 600 MHz
• Resolution range : 4K (4096x2160) @ 60 Hz, UHD (3840x2160) @ 60 Hz
• Color bit depth : 8, 10, or 12 bits – subject to the maximum data rate
• Formats : RGB and YCbCr digital video
• Standards : HDMI 2.0, DVI 1.0, HDCP 2.3

Video input

• Number/signal type : 1 HDMI (or single link DVI-D, with appropriate DVI-HDMI adapters)
• Connectors : 1 female HDMI type A
• Horizontal frequency : 15 kHz to 270 kHz for resolutions up to 18 Gbps
• Vertical frequency : 24 Hz to 240 Hz for resolutions up to 18 Gbps

Video output

• Number/signal type : 1 HDMI (or single link DVI-D, with appropriate DVI-HDMI adapters)
• Connectors : 1 female HDMI type A

Audio

• S/N : >90 dB, balanced, at maximum input
• Audio input — HAI 100 4K PLUS

Analog

• Number/signal type : 1 stereo balanced/unbalanced
• Connector : (1) 3.5 mm captive screw connector, 5 pole
• Impedance : 10k ohms unbalanced, 20k ohms balanced
• Nominal level : +4 dBu , -10 dBV configurable
• Maximum level : +21 dBu balanced, +15 dBu unbalanced
• CMRR : >60 dB typ @ 1 kHz
• Input gain adjustment : –18 dB to +24 dB, 1 dB steps

Digital

• Number/signal type : 1 S/PDIF
• Connector : 1 female RCA jack (tip, ring)
• Source formats : LPCM 2.0, Dolby Digital 2.0, Dolby Digital 2.0 Surround, Dolby Digital 5.1, Dolby Digital EX, DTS Digital Surround 5.1, DTS ES Matrix 6.1, DTS ES Discrete 6.1

Audio output — HAI 100 4K PLUS

• Number/signal type : 1 embedded digital audio from HDMI
• Connector : 1 female HDMI type A

Audio input — HAE 100 4K PLUS

• Number/signal type : 1 embedded digital audio from HDMI
• Embedded audio formats : LPCM 2.0, Dolby Digital 2.0, Dolby Digital 2.0 Surround, Dolby Digital 5.1, Dolby Digital EX, DTS Digital Surround 5.1, DTS ES Matrix 6.1, DTS ES Discrete 6.1
• Connector : 1 female HDMI type A

Audio output — HAE 100 4K PLUS

Analog

• Number/signal type : 1 stereo balanced/unbalanced
• Connector : (1) 3.5 mm captive screw connector, 5 pole
• Impedance : 50 ohms unbalanced, 100 ohms balanced
• Maximum level : >+12 dBV balanced, +6 dBV unbalanced

S/PDIF

• Number/signal type : 1 S/PDIF
• Connector : 1 female RCA jack (tip, ring)
• Impedance : 75 ohms

Control/remote

• USB control port : 1 front panel female mini USB, type B
• USB standards  : USB 2.0, high speed
• Program control : Extron Simple Instruction Set (SIS™), Extron PCS

General

Power supply

• HAI 100 4K PLUS : External
• Input: 100-240 VAC, 50-60 Hz
• Output: 12 VDC, 0.5 A, 6 watts
• HAE 100 4K PLUS : External
• Input: 100-240 VAC, 50-60 Hz
• Output: 12 VDC, 1.5 A, 18 watts

Power consumption

• HAI 100 4K PLUS
• Device : 4.3 watts
• Device and power supply : 4.9 watts

HAE 100 4K PLUS

• Device : 4.0 watts
• Device and power supply : 4.7 watts
• Temperature/humidity : Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
• Operating : +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
• Cooling : Convection, no vents

Thermal dissipation

HAI 100 4K PLUS

• Device : 13.6 BTU/Hr
• Device and power supply : 15.6 BTU/Hr

HAE 100 4K PLUS

• Device : 12.6 BTU/Hr
• Device and power supply : 14.8 BTU/Hr
• Enclosure type : Metal
• Enclosure dimensions : 1.0" H x 4.3" W x 6.0" D (quarter rack wide)(2.5 cm H x 10.9 cm W x 15.2 cm D)(Depth excludes connectors)

Product weight

• HAI 100 4K PLUS : 0.58 lbs (0.26 kg)
• HAE 100 4K PLUS : 0.57 lbs. (0.26 kg)
• Vibration : ISTA 1A in carton (International Safe Transit Association)
• Regulatory compliance : CE, c-UL, UL, C-tick, FCC Class A, ICES, VCCI
• Complies with appropriate requirements of RoHS and WEEE
