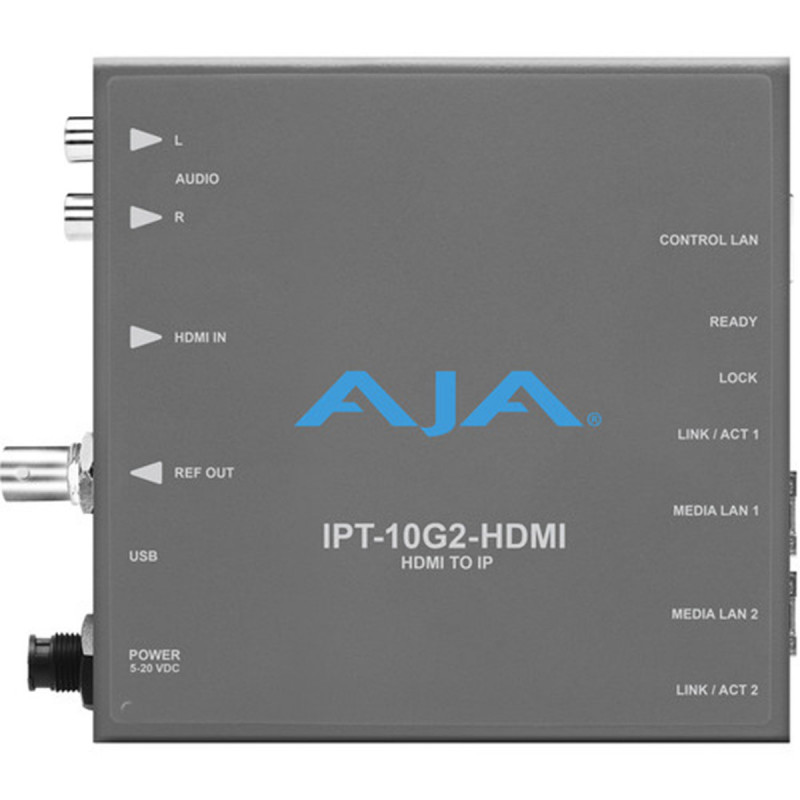

| Video Formats |
- (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 1920x1080i 50, 59.94
- (HD) 1280x720p 50, 59.94, 60
- (SD) 625i 50
- (SD) 525i 59.94
|
| Video Quality |
- 10-bit, 4:2:2, uncompressed
|
| Media Transport Interfaces |
- SMPTE ST 2110 (-10, -20, -21, -30)
- 2x SFP+ Cages - SFPs not included
- Recommended 10 GigE SFP+ modules:
- Arista Networks SFP-10G-SR Compatible 10GBASE-SR
- Fiberstore SFP-10GSR-85 10G SFP+ 850nm
- Finisar FTLX1471D3BCL (for single mode 1310nm)
- Mellanox MFM1T02A-SR 850nm 10G
Note: Maximum supported SFP+ power is 500 mW per SFP+ cage
|
| Video Input Digital |
1x HDMI Standard Type A connector
- HDMI v1.4b 24/30-bits per pixel
- Up to 1080 60p, 4:2:2, 10-bit, YCbCr/RGB
|
| Audio Input Digital |
- Up to 8-Channel, HDMI embedded audio, 24-bit per channel, 48 kHz synchronous
|
| Audio Input Analog |
2x RCA analog audio
- Levels at -10 dBu (nominal)
|
| Video Output IP |
SMPTE ST 2110
- Single video channel output
- SMPTE ST 2022-7 dual stream output for hitless switching
- Tx support for Narrow, Gapped Mode
|
| Audio Output IP |
SMPTE ST 2110
- Up to 8 channels audio, 24-bit per channel, 48 kHz synchronous
- 1 ms or 125 µs packet interval
- SMPTE ST 2022-7 dual stream input for hitless switching
|
| Reference |
1x BNC
- Reserved for Potential Future Features
|
| Discovery, Registration and Control |
- NMOS Tx discovery and control according to standards IS-04 v1.2 and IS-05 v1.0
- Ember+ control (no discovery, control only)
- AJA REST API control (discovery via SSDP or MDNS)
- Supported over dedicated management Ethernet port and in-band over media ports
|
| IP Clock |
- PTP support compliant with PTP PTPv2 / IEEE 1588-2008
- SMPTE ST 2059-1 compliant
|
| User Controls |
- 1x RJ-45 for 10/100/1000 Base-T Ethernet
- Web and REST clients supported for remote network setup and configuration
- 1x USB 2.0 Mini-B connector
- AJA eMini-Setup supported for network setup and configuration via local desktop computer
- Web and REST configuration is also supported in-band over media ports
|
| Size (w x d x h) |
- 5.07' x 0.94' x 5.06' (128.78 x 23.88 x 128.52 mm)
|
| Weight |
|
| Power |
- 5-20VDC Regulated, 13 Watts, Power supply required (DWP-U-R1 included with purchase)
|
| Environment |
- Safe Operating Temperature: 0 to 40 C (32 to 104 F)
- Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
- Operating Relative Humidity: 10-90% noncondensing
- Operating Altitude: <3,000 meters (<10,000 feet)
|
