189,60 € TTC
158,00 € HT
Garantie 3 ans

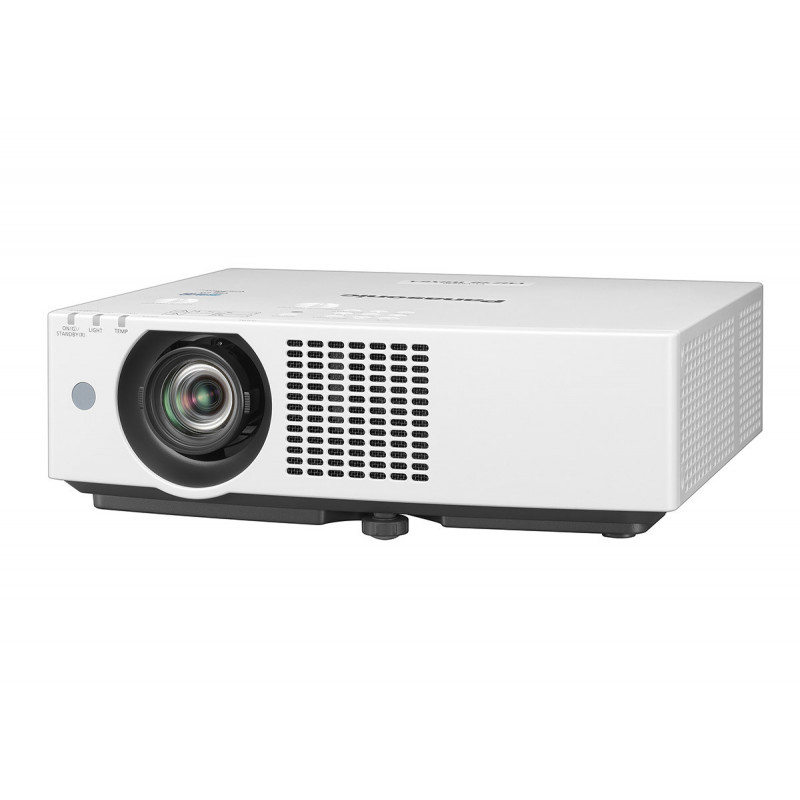

Projecteur laser LCD 4 500 lumens compact, économique et facile à installer, conçu pour une luminosité longue durée en milieu éducatif et en entreprise
Les projecteurs de la gamme VMZ sont dotés de la technologie de refroidissement de Panasonic, ce qui en fait les projecteurs laser les plus petits et le plus légers au monde*1 dans cette catégorie de lumens. Avec un poids inférieur à 7,2 kg, son boîtier compact peut s’adapter à tous les types de salles.
La source laser offre des images lumineuses pendant 20 000 heures, sans les coûts d’entretien et les problèmes liés au remplacement des lampes classiques.
Light output*1 | 4 500 lumens |
Technology | Laser LCD |
LCD panel | Panel size (mm) | 16 mm diagonal (16:10 aspect ratio) |
LCD panel | Panel size (inch) | 0.64 inch diagonal (16:10 aspect ratio) |
LCD Panel | Display Method | Transparent LCD panel (x 3, R/G/B) |
LCD Panel | Drive Method | Active matrix |
LCD Panel | Pixels | 2,304,000 (1920 x 1200) x 3, total of 6,912,000 pixels |
Lens | 1.6 x Manual zoom (throw ratio 1.09-1.77 :1), F = 1.60-2.12, f = 15.30-24.64 mm |
Light Source | Laser diode |
Screen size (diagonal) (mm) | 0.76 - 7.62 m, 16:10 aspect ratio |
Screen size (diagonal) (inch) | 30-300 in, 16:10 aspect ratio |
Center-to-Corner Uniformity*1 | 85 % |
Contrast*1 | 3,000,000:1 (all white/all black) (Input signals:PC,LIGHT POWER:NORMAL,PICTURE MODE:DYNAMIC,DAYLIGHT WIEW:OFF,DYNAMIC CONTRAST:[1],AUTO POWER SAVE:OFF) |
Resolution | 1920 x 1200 pixels |
Optical axis shift | Vertical (from center of screen) | 0 % - +44 % (Manual) |
Optical axis shift | Horizontal (from center of screen) | ± 20% (Manual) |
Keystone correction range*2 | Vertical: ±25°, Horizontal: ±35° |
Installation | Horizontal/Vertical, free 360-degree installation |
Terminals | HDMI 1/2 IN | HDMI 19-pin x 2 (Compatible with HDCP, Deep Color, 4K/30p signal input) |
Terminals | Computer 1 In | D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) |
Terminals | COMPUTER 2 IN / MONITOR OUT |
D-sub 15-pin (female) x 1 (RGB/YPBPR/YCBCR) (input/output switching) |
Terminals | Video In | Pin jack x 1 |
Terminals | AUDIO 1/2 IN | M3 stereo mini-jack x 2 |
Terminals | AUDIO 3 IN | Pin jack (L/R) x 1 |
Terminals | Variable Audio Out | M3 stereo mini-jack x 1 |
Terminals | Serial In | D-sub 9-pin x 1 for computer control (RS-232C compliant) |
Terminals | LAN | RJ-45 x 1 for network control, 10Base-T, 100Base-TX, compatible with PJLink™ (Class 2) |
Terminals | USB CONNECTOR | USB connector (Type A) x 1 for Memory Viewer function, power supply (DC5V, maximum 2A*3), optional wireless module AJ-WM50 |
Power Supply | AC 100-240 V AC, 50/60 Hz |
Power Consumption | TBD |
Built-in Speaker | 10 W (monaural) |
Operating noise*1 | NORMAL: 37dB, QUIET: 27dB |
Cabinet Materials | Molded plastic |
Filter | Included Filter cleaning cycle: 20,000 hours (0.08 mg/m3 of particulate matter), 10,000 hours (0.15 mg/m3 of particulate matter) |
Dimensions (W x H x D) (mm) | 399 x 115 x 348 mm (Not including protruding parts)399 x 133 x 348 mm (With feet at shortest position) |
Dimensions (W x H x D) (inch) | 15 23/32 x 4 17/32 x 13 11/16 inch (Not including protruding parts)15 23/32 x 5 1/4 x 13 11/16 inch (With feet at shortest position) |
Weight (kg)*4 | 7.2 kg |
Weight (lbs.)*4 | 15.87 lbs. |
Operating environment (℃/M) | Operating temperature: 0 °C- 45 °C, operating humidity: 20 %-80 % (no condensation) |
Operating environment (°F/Feet) | Operating temperature: 32 °F -113 °F, operating humidity: 20 %-80 % (no condensation) |
Applicable software/application | Logo Transfer Software, Multi Monitoring & Control Software, Presenter Light for Windows®, Wireless Projector Apps for iOS/Android™ |
Note | *1 Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2012 international standards. Value is average of all products when shipped. *2 Around this time, light output will have decreased by approximately 50 %. IEC62087: 2008 Broadcast contents, NORMALMode, Dynamic Contrast [2], under conditions with 30 °C (86 °F), 700 m (2,297 ft) above sea level, and 0.15 mg/m3 of particulate matter. Estimated time until light output declines to 50 % varies depending on environment. *3 On standby, power supply is available with Quick Startup set to ON or Power Management set to Ready. *4 Average value. May differ depending on the actual unit. |
