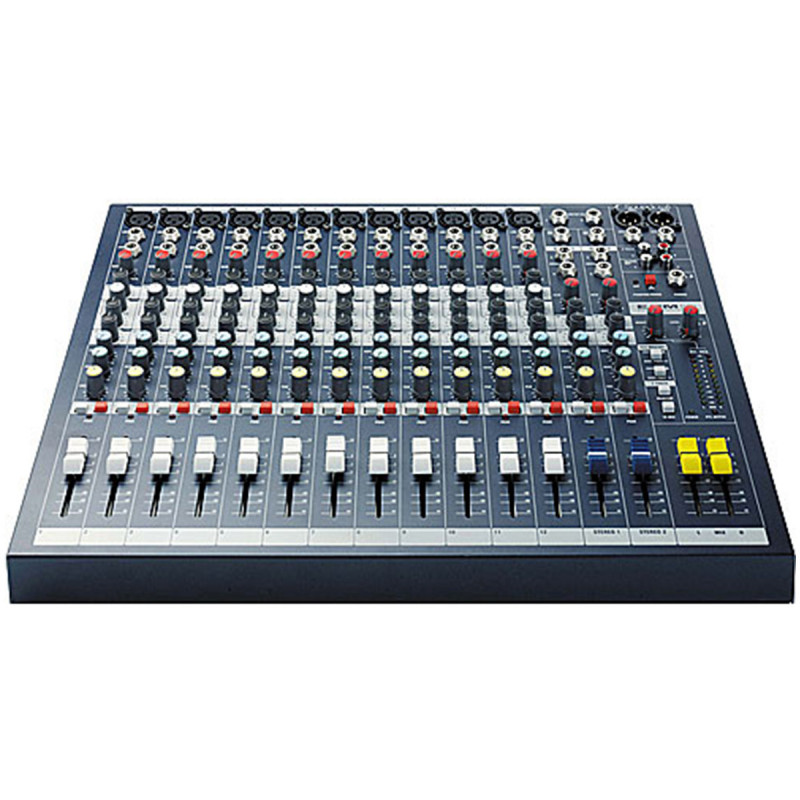

Soundcraft RW5736EU - Console EPM 12 - 12 mono / 2 stéréo
1 year warranty
- 12 Mono & 2 Stereo Input Channels
- 12x GB30 Microphone Preamplifiers
- Recording and Live Sound Audio Console
- Compact Mobile Enclosure
Soundcraft RW5736EU - Console EPM 12 - 12 mono / 2 stéréo
- Soundcraft EPM 12 - 12 Mono + 2 Stereo Audio Console
Soundcraft EPM 12 - 12 Mono + 2 Stereo Audio Console
The Soundcraft EPM Series provides a straight-forward, yet professional alternative to complex audio mixers. Constructed in a 6-, 8- or 12-channel chassis, the EPM mixers are well-suited for recording and sound reinforcement applications.
The EPM 12 features 12 mono and 2 stereo input channels providing the flexibility needed to accommodate the recording studio, venue or touring musician. All mono inputs feature 1/4" phone line and balanced XLR microphone inputs. The famed GB30 microphone preamps provide the quiet, detailed signal synonymous with Soundcraft's large FOH consoles. The stereo inputs provide L/R 1/4" phone connections and are ideal for connecting stereo devices such as keyboards, returning effects, etc.
The EQ section features a sweepable mid-range on all mono channels and provides smooth frequency contouring. Inserts on all mono channels and stereo output enable signal routing to external signal processors. The compact profile, rich sound quality and flexibility of the EPM Series provides everything necessary for use in project recording, video editing, night clubs, bars, meeting halls, houses-of-worship, and more.
12 Mono and 2 Stereo Channels
The EPM 12 features 12 mono microphone and line input channels, 2 stereo inputs feature L/R 1/4" phone connections
Comprehensive Controls
The comprehensive layout is designed to attract users who require a straight-forward mixing environment
GB30 Microphone Preamplifiers
All 12 mono inputs feature Soundcraft's GB30 microphone preamps for quiet, clean large-format FOH console quality
Compact and Professional
The EPM Series consoles pack a professional feature set in a compact, mobile enclosure
Inputs:
12 balanced Mic/Line inputs on XLR/6.35 mm Jack with insert
2 balanced stereo inputs on 6.35 mm jack
1 unbalanced 2Trk return input on RCA
Exits :
2 balanced mix outputs on XLR with insert
2 balanced monitor outputs on 6.35 mm jack
2 unbalanced Record outputs on RCA
1 headphone output on 6.35 mm stereo jack
2 balanced Aux outputs on 6.35 mm Jack
Frequency response: +1/-1.5dB, 20Hz – 20kHz (input/output)
Distortion + Noise: < 0.02% @ 1kHz (Mic sensitivity -30 dBu + 14 dBu output mix)
Signal to Noise Ratio: -127 dBu (150Ω source, mic input max gain), < -85 dBu (Aux, Mix and Master 0 db)
Crosstalk: >96 dB (Channel), >86 dB (Aux, Main) @ 1 kHz
EQ:
(single channel)
HF: 12 kHz, ±15 dB
MF: 150Hz - 3.5kHz, ±15dB
AF: 80Hz, ±15dB
Q=1.5
(stereo channel)
HF: 12kHz, ±15dB
AF: 80Hz, ±15dB
Levels:
Mic input: +15dBu max
Line input: +30dBu max
Stereo input: +30 dBu max
Mix output: +20dBu max
Headphone Output (@32Ω): 300mW
Impedances:
Mic input: 2 kΩ
Line input: 10 kΩ
Stereo input: 65 kΩ
Mix output: 150Ω
Consumption: 35W
Temperature: 5°C to 40°C
Dimensions: 432 x 91 x 362mm
Weight: 5.8kg
