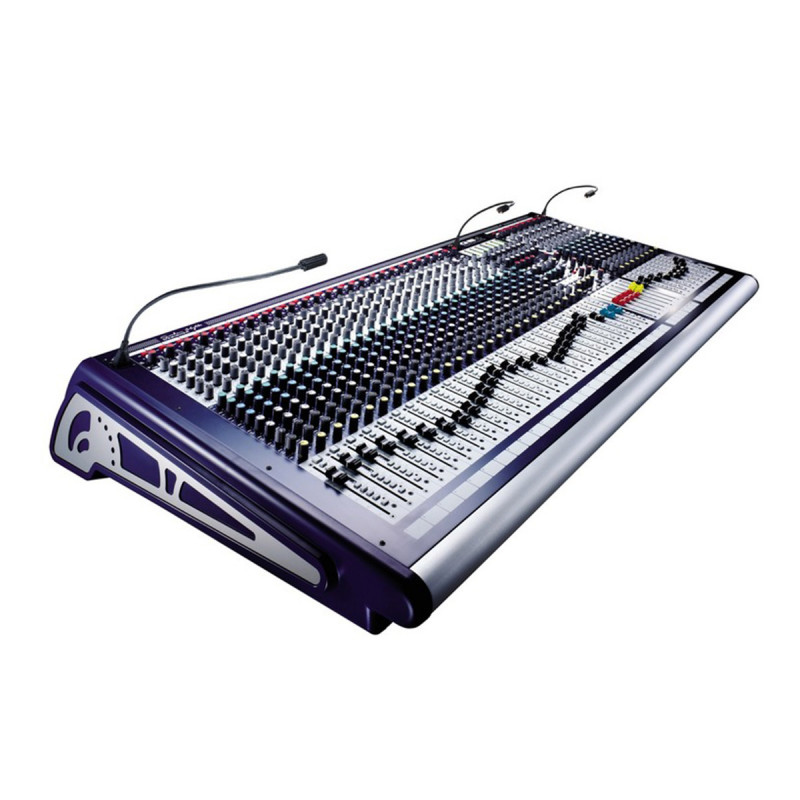

Soundcraft RW5693 - Console GB4 - 40 mono / 2 stéréo / 8 aux
Photo(s) non contractuelle(s)
zoom_out_map
chevron_left chevron_right

Soundcraft RW5693 - Console GB4 - 40 mono / 2 stéréo / 8 aux

1 year warranty

Product highlights
  • Versatile console, front & back
  • 40 mono inputs
  • 2 stereo inputs
Déclinaisons


€4,198.80 (tax incl.) €3,499.00 (tax excl.)
Tax included
ou réglez en :
Paiement en deux fois Paiement en trois fois Paiement en quatre fois avec Paiement fraction avec Alma

Sélectionnez Paiement fraction avec Alma au moment du paiement

en Paiement en deux fois en Paiement en trois fois en Paiement en quatre fois
Aujourd'hui*  €  €  €
Dans 1 mois  €  €  €
Dans 2 mois  €  €
Dans 3 mois  €
Total TTC  €  €  €
refresh Sur Commande - Habituellement expédié entre 3 et 21 jours Le produit est en cours de réapprovisionnement et sera bientôt en stock.
Description

Soundcraft RW5693 - Console GB4 - 40 mono / 2 stéréo / 8 aux

In my box
  • Soundcraft RW5693 - Console GB4 - 40

Soundcraft GB4 - 40 Mono Channel Live Sound / Recording Console

The Soundcraft GB4 live console series is designed to deliver the audio fidelity and mixing capabilities necessary in front-of-house (FOH) or monitor mixing applications in large or small venues. The GB4 is available in 12, 16, 24, 32 and 40 channel frames to suite specific needs in live sound mixing.

This model is configured with 40 input channels. 40 inputs feature microphone and line level connections, an additional 4 stereo inputs are provided as well. The stereo inputs (ST1 - ST4) provide L/R stereo line level inputs and 3-pin XLR microphone inputs for stereo microphone placement when capturing vocals, instruments, ambiance, etc. The console features 4 group outputs enabling routing to monitors, external recorders, etc. The GB4 series implements Soundcraft's GB30 microphone preamp and EQ, delivering the sonic quality expected of more costly consoles.

Additional features include Soundcraft's famed matrix mixer for added routing flexibility and an integrated meter bridge, enabling accurate metering.

40 Mono, 4 Stereo Input Channels

The GB4 series is available in a variety of frame configurations. This model features 40 mono and 4 stereo inputs

4 Subgroup Outputs

The GB4 series feature 4 group outputs for routing to external recorders, monitors, etc.

Matrix Mixer

The matrix output mixer provides added routing flexibility.

8 Auxiliary Sends

8 auxiliary sends provide plenty of routing to external effects, monitors, etc.

Direct Outputs

All mono inputs provide direct outputs for direct routing to recorders, mixers, etc.

GB30 Microphone Preamplifiers

Soundcraft's GB30 microphone preamplifiers provide an ultra low-noise floor while maintaining high output gain.

Integrated Meter bridge

The GB4 series features an integrated LED and VU meter bridge for accurate metering of input and output level.

Technical sheet
  • Versatile console, front & back
  • 40 mono inputs
  • 2 stereo inputs
  • Auxiliaries: 8
  • 4 groups (swap with the first 4 auxiliaries)
  • Main stereo and mono output
  • Direct output on all inputs
  • Matrix: 7x4
  • 4 mute groups
  • 2 stereo returns
  • 4-segment level meters on inputs
  • 12-segment level meters on outputs
  • Record output with limiter
  • Colored buttons for better visibility
  • Dimensions: 1523 (W), 235 (H + headband), 656 mm (D)
  • Weight: 37kg
Data sheet
RW5693
688705209456
