Soundcraft RW5692 - Console GB4 - 32 mono / 2 stéréo / 8 aux

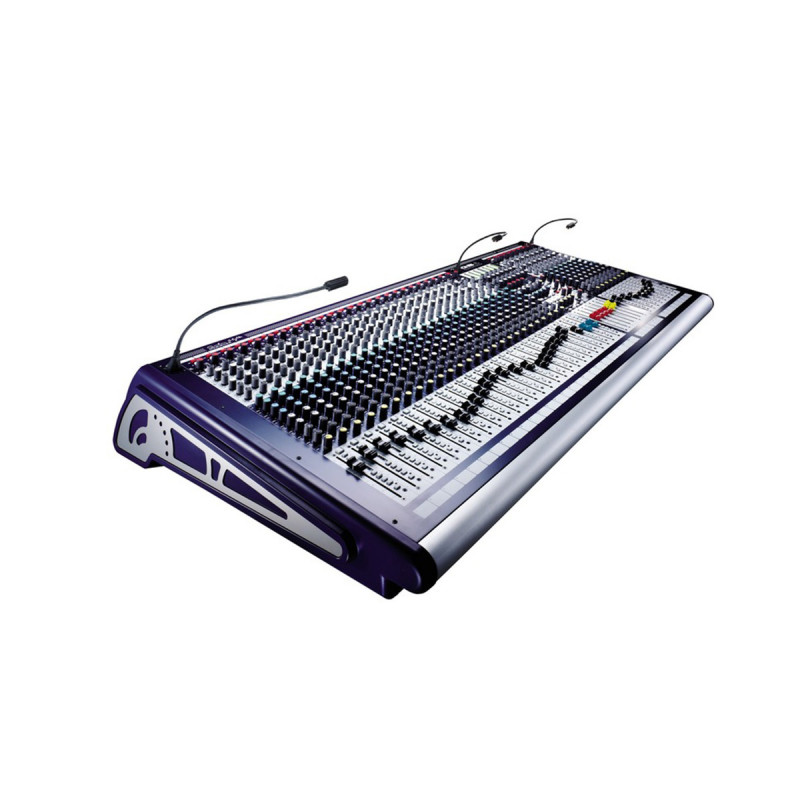

Soundcraft GB4 - 32 Mono Channel Live Sound / Recording Console

The Soundcraft GB4 live console series is designed to deliver the audio fidelity and mixing capabilities necessary in front-of-house (FOH) or monitor mixing applications in large or small venues. The GB4 is available in 12, 16, 24, 32 and 40 channel frames to suite specific needs in live sound mixing.

This model is configured with 32 input channels. 32 inputs feature microphone and line level connections, an additional 4 stereo inputs are provided as well. The stereo inputs (ST1 - ST4) provide L/R stereo line level inputs and 3-pin XLR microphone inputs for stereo microphone placement when capturing vocals, instruments, ambiance, etc. The console features 4 group outputs enabling routing to monitors, external recorders, etc. The GB4 series implements Soundcraft's GB30 microphone preamp and EQ, delivering the sonic quality expected of more costly consoles.

Additional features include Soundcraft's famed matrix mixer for added routing flexibility and an integrated meter bridge, enabling accurate metering.

32 Mono, 4 Stereo Input Channels

The GB4 series is available in a variety of frame configurations. This model features 32 mono and 4 stereo inputs

4 Subgroup Outputs

The GB4 series feature 4 group outputs for routing to external recorders, monitors, etc.

Matrix Mixer

The matrix output mixer provides added routing flexibility.

8 Auxiliary Sends

8 auxiliary sends provide plenty of routing to external effects, monitors, etc.

Direct Outputs

All mono inputs provide direct outputs for direct routing to recorders, mixers, etc.

GB30 Microphone Preamplifiers

Soundcraft's GB30 microphone preamplifiers provide an ultra low-noise floor while maintaining high output gain.

Integrated Meter bridge

The GB4 series features an integrated LED and VU meter bridge for accurate metering of input and output level.
