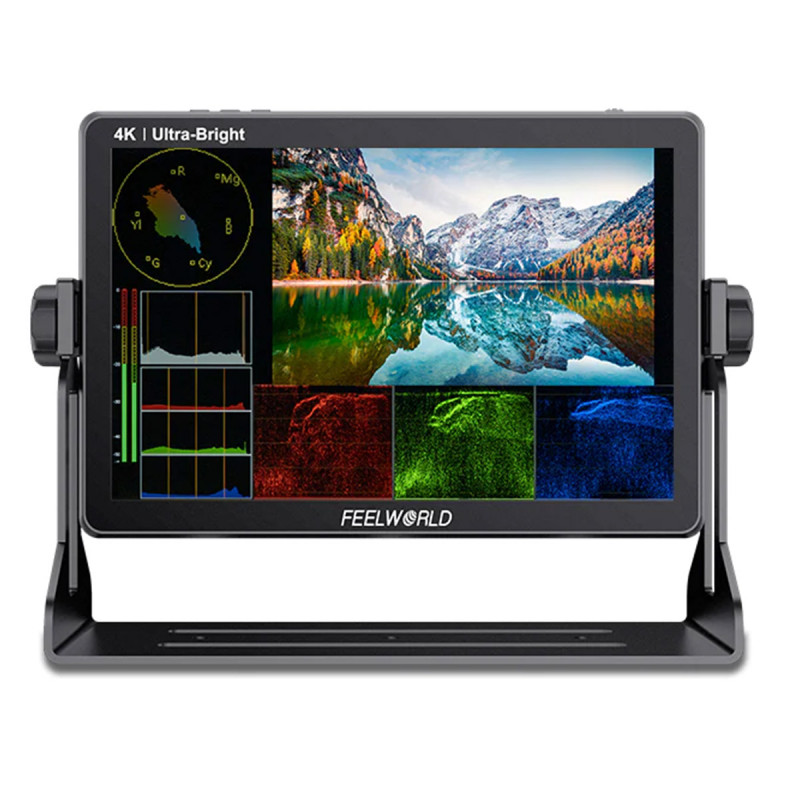

FEELWORLD LUT11S 10.1 INCH ULTRA HIGH BRIGHT 2000NIT
10.1-inch Professional SDI/HDMI Camera Monitor
FEELWORLD LUT11S is a 10.1-inch with full touch screen, ultra brightness 2000nit professional camera monitor. Supports 3G-SDI and up to 4K@60Hz HDMI signal input and output. Provides a series monitoring and framing tools with new menu layout, various numerical parameters are clear at a glance, making the operation easier. There is a F970 external install and power kit on the rear of LUT11S, which can install such as wireless transmission, LED light, etc. It combines the monitor with wireless transmission to get rid of unnecessary cables, , which is perfect for director monitoring, 1st AC to focus pulling in the film crew. The dual battery plates design can install two F970 batteries at the same time for long-time power supply even outdoors. Ideal for crew field shooting, monitoring and post-production.
10.1” LCD Full HD Resolution
Viewing clearly and capture every detail with confidence
The LUT11S comes with a 10.1-inch 1920x1200 full HD panel, multiple color gamut such as DCIP3 display your stills and monitoring content at superior color fidelity, provide more space for post color correction. The wide 170º viewing angle makes it easy for multiple members of the crew to watch it at the same time.
Multiple Color Gamut, Meet the Different Needs of Photographers
The monitor supports REC709、DCIP3、BT2020 multiple color gamut, presenting rich color, meet the different needs of photographers for color gamut.
2000nit Daylight Viewable - Ideal for outdoor shooting
With the support of 2000 nits of ultra-high brightness, LUT11S is not afraid of strong light. And the outdoor shooting screen display is clearly visible, you can shoot without a sunshade.
Light Sensor for Auto Dimming
The LUT11S has an ambient light sensor, from a dim studio to a sunny location, from midnight moonlight to noon sunshine, it can automatically adjust the monitor brightness to fit your filming environment.
New UI Menu, More Intuitive and Intelligent
LUT11S adopts new UI menu, take the software functions are iconized, it is more convenient and quickly to operate the function.
Custom Shortcut Keys
On the top of LUT11S comes with three custom shortcut buttons , the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.
Full Touch Screen Design
Easy and sensitive operation, make your filming more efficiency
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate via scroll wheel key.
Innovative External Install and Power Design
Simplify your photography equipment
A Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmission, LED light, video converter and others that can be powered by a Sony F970 battery. This innovative external power supply design meets the need to power for external wireless transmission, LED light and other equipment, greatly saving the space occupied by the equipment and reducing the weight of photography equipment.
The kit has two cross slots, you can adjust the position of the external device by loosening the screws. When you don't need the kit, you can directly loosen the screws to remove the kit.
SDI+Dual HDMI, More Interfaces Selection
Compatible with movie cameras, DSLR cameras
SDI perfect for the movie cameras, dual HDMI signal inputs are easily matched with SLR camera and one output, support up to 4K@60Hz, which is transmitting without loss and the screen is more smooth and clear. And provides 3.5mm headphone jack to monitor audio.
Note: HDMI1 input default to loop-out from HDMI1 output, HDMI2 can’t loop-out
Power your DSLR or mirrorless camera
The LUT11S is not only equipped with DC IN 12V (suit for use 12/3A adapter), but also provides auxiliary power out (DC OUT 8V) allowing shooters to power their cameras. With a battery adapter cable (Optional), the LUT11S extends camera run-time, while providing a more usable display.
Barrel output for powering your camera with a separately available DC coupler via adaptor (NP-FW50 Sony & LP-E6 Canon & DMW-BLF19 Panasonic). More adapters coming soon.
Note: since different brands and models of cameras require different power for normal operation, the camera may not be able to take pictures or video normally. Therefore, when using batteries to power the monitor, in order to use the camera normally, it is recommended to use a large-capacity fully charged battery.
Dual Battery Plates
Long-lasting power for outdoor shooting
The rear of monitor of LUT11S have dual battery plates, can install two standard NP-F batteries, long-lasting power for your screen. In addition, you can switch the battery quickly, just double tap the battery icon on the upper right corner of the monitor about 3 seconds to finish the switching, and don’t worry interrupting monitoring. Install one F970 battery (6600mah) last for about 2 hours, and install two F970 batteries last for about 3.5-4 hours. You can choose install 1 or 2 battery base on your need.
● Compatible Sony NP-F Battery: F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 series (Note: the battery not including, please purchase separately. Higher capability (working time) will be longer)
Smarter Tools for Absolute Precision
Our flexible OS is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, framing & exposure (waveform, RGB parade, vectorscope, RGB histogram, histogram, embedded audio, focus peaking, zoom, zebra, false color, safe frames, etc.) as well as a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files) and options for anamorphic de-squeeze monitoring.
Load Custom 3D LUTs，Preview Filming Look in Field Shooting
Support to load 50 custom LUTs
The LUT loading function makes the color calibration easier and more intuitive, optimizes the workflow and improves the work efficiency in the early stage of shooting. You could use built-in LOG or upload .cube files. LUT11S allows you to load internally up to 50 custom LUTs, looks or profiles at any time via the SD Card Slot and instantly select between them, maintaining creative intent, always
3G-SDI Supports 3D-LUT Loopout
The LUT11S supports 3G-SDI signal LUT loop-out function, which can output custom LUT image to other displays, so the director and photographer can see the images with LUT at the same time. When the signal is SDI, and you need to use this function, just turn on "LUT Switch" and "SDI Out (LUT)" on the menu.
HDR Monitoring
LUT11S supports HDR (high dynamic range) monitoring, for incredible clarity and detail, simplifies the complexities of shooting Log and HDR, helping you to replicate post-production workflows at the moment when it matters most–while shooting. When the HDR function is turned on, you can select Gamma and Gamut corresponding to the camera Sony, Canon, Panasonic, Fujifilm, Bolex, RED, ARRI.
Save your budget
When you need to analyze image quality more accurately than simply looking at the picture then use LUT11S's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vector, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. LUT11S becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Three Colors Tally Indicator
Strengthen the cooperation between the cameraman and the director
There is a rear TALLY light with 3 colors （green, red, yellow）display, and controlled via DB-9 ports at the bottom of the monitor.
Multiple Installation Methods
Meet your diverse need of monitoring
The monitor is equipped with 3 standard 1/4”mounting threads (bottom, right, left side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Whether it is horizontal or vertical shooting, you can accurately monitor.
