Blackmagic ATEM SDI live production switchers

Blackmagic ATEM SDI live production switchers

The ATEM SDI is a family of live production switchers designed for broadcasters who need extreme portability! ATEM SDI switchers are very similar to ATEM Mini, but the video connections are 3G-SDI and each model has double the number of video outputs! You have 4 SDI inputs on the ATEM SDI and ATEM SDI Pro ISO models and 8 SDI inputs on the ATEM SDI Extreme ISO model. In addition, all SDI inputs have standards and retiming converters! You even get DVEs for the picture in picture effects! The USB functions as a webcam to connect video to computers, while the Pro and Extreme models feature built in streaming. For audio, the Fairlight mixer includes a compressor, limiter and 6-band parametric EQ on each input!

A New Generation of Ultra-Portable Live Production!

ATEM SDI gives you the portable design of ATEM Mini, but its SDI connections allow you to connect advanced broadcast quality cameras and recorders. This opens up a whole new world of ultra-portable live production. The incredibly portable design means you can fit an entire broadcast quality live production system into a small bag or even a backpack! You can use multiple cameras on location and stream live directly to YouTube, or create a broadcast-quality link to a studio with ATEM Streaming Bridge. Unlike remote shooting with a single camera, ATEM SDI allows you to connect multiple cameras so you can create interesting remote interviews with multiple camera angles.

Standalone Broadcast Quality Switch

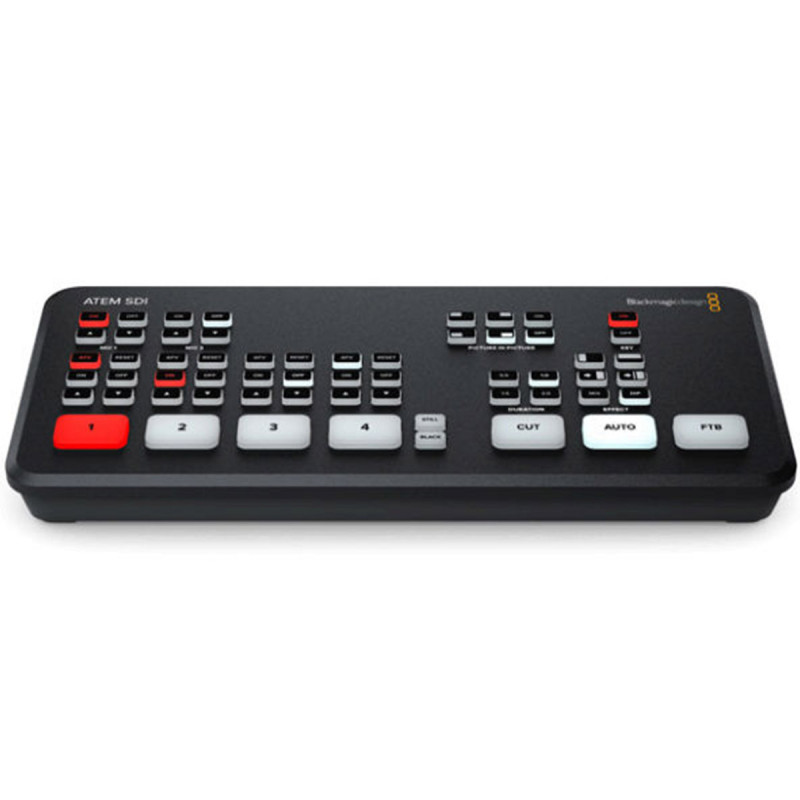

ATEM SDI's compact all-in-one design includes both control panel and connections. The front panel includes easy to use buttons for selecting sources, video effects and transitions. The source buttons are large, so it can be operated by touch, leaving the presenter to do the switching! You even get buttons for audio mixing! ATEM SDI Pro and Extreme models have buttons for recording and streaming control, as well as output selection buttons that allow you to change the video output between program, live camera feeds and multiview . On the rear panel there are SDI connections for cameras, additional microphone inputs, USB for webcam as well as several "aux" SDI outputs for program video.

ATEM SDI is quick to set up and easy to use. It includes 4 standards-converted SDI inputs, USB webcam, 2 SDI outputs, Fairlight audio mixer with EQ and dynamics, DVE for picture-in-picture, transition effects, green screen chroma key, pool of 20 still images for titles and free ATEM software control.

Easy to use and quick to learn!

There's never been a switcher so easy to use, as you simply press one of the number-labeled input buttons on the front panel to cut between video sources. You can choose between cut or effect transitions by selecting the cut or auto buttons. Unlike mute, the auto button tells ATEM SDI to use a video effect when switching inputs. You can choose from exciting transitions such as crossfade or more dramatic effects such as dip to color, DVE squeeze and DVE push. Add DVE effect for picture in picture effects with custom picture positions and background. There are even "media players" that still store titles and graphics that you can load through external control software.

With 4 or 8 video inputs, depending on model, ATEM SDI allows you to connect multiple cameras for different views of the performance. Video cameras with SDI outputs such as Blackmagic Studio Camera or Blackmagic URSA Broadcast G2 are much higher quality because they have better low light performance and they use professional lenses. All video sources will resynchronize with the switcher, even if they are running on different video standards. Everything works, so on-site installation is easy and you don't have to worry about technical issues. Imagine enjoying the creative freedom of multi-camera live production for interviews, infomercials, theater productions, musical performances, sports and more!

To ensure maximum compatibility, all ATEM SDI models are equipped with a USB port that functions as a simple webcam source. This means you can connect to a computer and start
