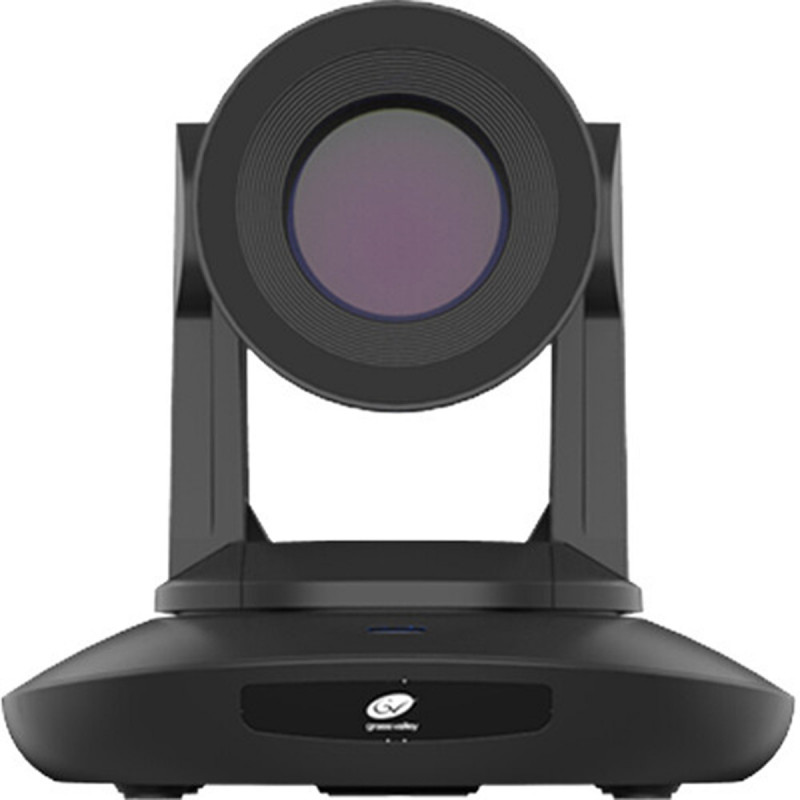

Grass Valley PTZ camera Professional UHD (up to 30p)/HD 3G/SD
1 year warranty
- 4K video over IP, H.264, H.265 encoding
- Supports NDI v4.0 video transmission and control
- Fast video format change: less than 3 seconds
- Field upgrade supported for ISP, ARM, FPGA and USB
- USB 3.0 port compatible with USB 2.0 output
- Support RS-232/RS-485/UVC control
Grass Valley PTZ camera Professional UHD (up to 30p)/HD 3G/SD
- Grass Valley PTZ camera Professional UHD (up to 30p)/HD 3G/SD
Grass Valley PTZ camera Professional UHD (up to 30p)/HD 3G/SD
Professional UHD/HD/SD broadcast and conference camera
There are many situations that require video capture, but where sending a cameraman is not possible. When you need a small, unobtrusive camera that you can "set and forget", the Grass Valley Pan-Tilt-Zoom Camera offers a versatile and affordable way to capture images in situations that aren't suitable for larger cameras, with the image quality you expect from a Grass Valley camera.
The operation of the camera is simple. The PTZ 35X HD reduces production complexity with remote control from any of Grass Valley's Kula switches or automated as part of GV Pace preset scenes. Images from the PTZ 35X can be mixed with images from Grass Valley LDX cameras without the public noticing any noticeable changes in image quality.
- Video formats HDMI (v1.4): 3840x2160p30/25
- HDMI video formats (v1.4): 1920x1080p60/50/30/25/59.94/29.97/24
- Video formats HDMI (v1.4): 1920x1080i60/50/59.94
- HDMI video formats (v1.4): 1280x720p60/50/30/25/59.94/29.97
- SDI video formats: 1920x1080p60/50/30/25/59.94/29.97/24
- IDS video formats: 1920x1080i60/50/59.94
- IDS video formats: 1280x720p60/50/30/25/59.94/29.97
- USB video formats: 1920x1080p60/50/30/25 (USB 3.0)
- USB video formats: 1280x720p60/50/30 (USB 3.0)
- USB video formats: 1280x720p25 (USB 3.0 and USB 2.0)
- USB video formats: 1024x576p30 (USB 3.0 and USB 2.0)
- USB video formats: 960x540p30 (USB 2.0)
- USB video formats: 640x360p30 (USB 2.0)
- USB video formats: 512x288p30 (USB 2.0)
- NDI video formats: 3840x2160 @15~30
- NDI video formats: 1920x1080 @15~30
- NDI video formats: 1280x720 @15~30
- NDI video formats: 1027x576 @15~30
- NDI video formats: 640x360 @30 (low bandwidth mode)
- Video interface: HDMI (v1.4), SDI, NDI|HX, USB3.0, USB2.0
- Sensor: 1/1.7 in. 12.4 megapixel CMOS sensor
- Zoom: f5.8–20.3mm (35X), f1.5–4.8
- Zoom Angle of view: 60.5° (far) – 2.02° (near), horizontal
- Pan Rotation Angle: -170° ~ +170°
- Rotation Angle Tilt: -30° ~ +90°
- Rotation Speed: Pan: 0°~120°/s
- Rotation Speed: Tilt: 0°~80°/s
- Rotation speed: Remote control: 10
- Rotation speed: RS-232: 128
- Rotation speed: Accuracy: 0.1°
- Control Port: RS-232, RS-485, NDI|HX (VISCA over IP), USB 3.0 (UVC1.5), USB 2.0 (UVC1.1)
- Network speed: 1000 MB/s
- Video encoding: H.264/H.265
- Bit rate control: Variable bit rate, constant bit rate
- Video bitrate: 1024 KB/s ~ 20480 KB/s
- Protocol supported: TCP/IP, HTTP, RTSP, DHCP, RTMP, ONVIF (2.4), NDI (V4.0)
- Supported protocol: VISCA over IP (TCP and UDP), HTML5, VISCA, PELCO P/D
- PoE: Supported, POE+ (IEEE 802.3at)
- Daisy Chain: Support RS-232 serial daisy chain
- Minimum Lux: Supported, POE+ (IEEE 802.3at)
- White balance: Auto / indoor / outdoor / manual / push / auto sodium lamp / sodium lamp
- Exposure: Auto / Manual / Bright / Shutter / Iris
- Focus: Auto/Manual
- Iris: Automatic / Manual
- Electric shutter: Automatic / Manual
- Gamma: Support
- WDR: Support
- BLC: Support
- 2D noise reduction: Support
- 3D noise reduction: Support
- Anti-Flicker: OFF/50Hz/60Hz
- Pan Tilt Tilt: Support
- Input voltage: DC12V/PoE (IEEE802.3af)
