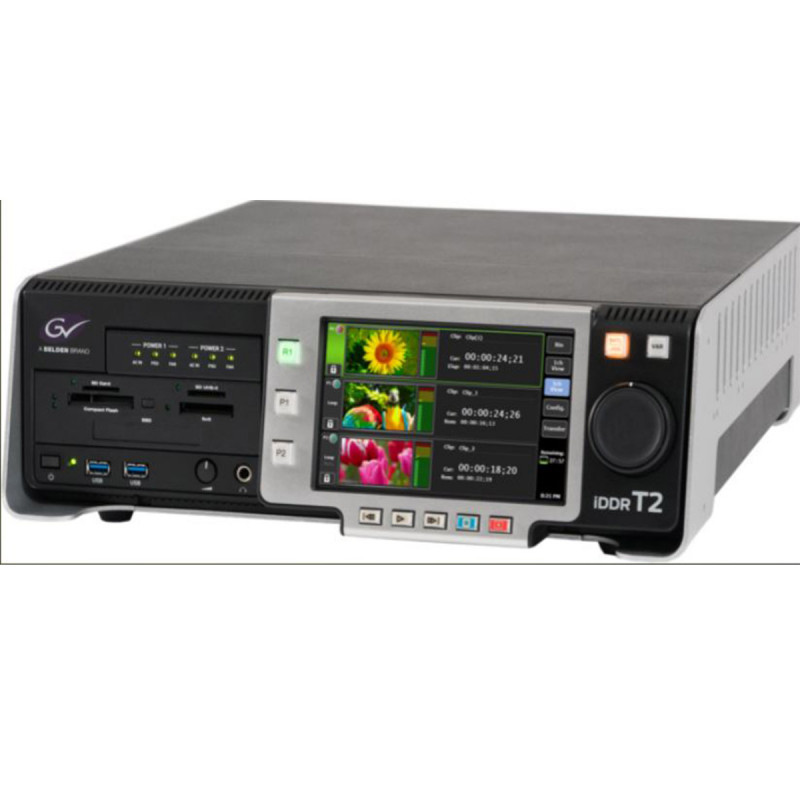

Grass Valley T2 iDDR 4K Elite

Fashions

• 4K: 1 in 0 out
• 4K: 0 to 1 output
• HD/SD: 1 input 2 outputs
• HD/SD: 0 in 3 out

Storage

• System: M.2 SSD 64GB data
• T2 4K Elite/Elite Plus: SSD (RAID-0), 2TB
• T2 4K Pro/Pro Plus: HDD (RAID-0), 2TB
• T2 4K Express/Express Plus: HDD (RAID-0), 2TB capacity
• 3.5 hours: 4K DCI (4096x2160) 59.94p @ Grass Valley HQX (1.2 Gbps)
• 7.5 hours: 4K DCI (4096x2160) 29.97p @ Grass Valley HQX (600Mbps)
• 3.5 hours: 4K UHD (3840x2160) 59.94p @ Grass Valley HQX (1.2 Gbps)
• 7.5 hours: 4K UHD (3840x2160) 29.97p @ Grass Valley HQX (600Mbps)
• 2 p.m.: HD (1920x1080) 59.94p @ Grass Valley HQX (300 Mb/s)
• 28 hours: HD (1920 x 1080) 59.94i @ Grass Valley HQX (150 MB/s)
• 72 hours: HD (1920 x 1080) 59.94i @ XDCAM HD422 (50 MB/s)
• 150 hours: HD (1440x1080) 59.94i @ XDCAM HD (35 Mb/s)

Power supply

• T2 4K Elite/Elite Plus:

redundant PSU media card

• T2 4K Elite/Eite Plus: SD, SD UHS-II, Compact Flash, SxS, 2.5" SSD bay

Video input format

• Format support: 4K DCI, 4K UHD, HD, SD
• Connector (Elite/Pro/Express): BNC (3G/HD-SDI) x4 (shared with video output)
• Connector (Elite Plus/Pro Plus/Express Plus): DIN 1.0/2.3 (3G/HD-SDI) x8

Codec (4K DCI/4K UHD):

• AVI - Grass Valley HQX
• MXF - Grass Valley HQX

Codec (HD/SD):

• AVI - Grass Valley HQX
• MXF - Grass Valley HQX, XDCAM, ProRes, DNxHD

Bit rate (Grass Valley HQX):

• Up to 1.2 GB/s (4K DCI/4K UHD 59.94/50)
• Up to 600MB/s (4K DCI/4K UHD 29.97/25/24/23.98)
• Up to 300 MB/s (1080p 59.94/50)
• Up to 150 MB/s (HD, SD)

Resolution/Frame Rate (Elite/Elite Plus/Pro/Pro Plus):

• [4K DCI] 4096x2160p
• [UHD 4K] 3840x2160p
• [HD] 1920x1080p (59.94p, 50p, 29.97p, 25p, 24p, 23.98p), 1920x1080i,1920x1080PsF, 1440x1080p 1440x1080i (59.94i, 20p7), 1440x1084PsF, 1084PsF, 1440x1080PsF
• [SD] 720x486i (59.94i), 720x576i (50i)

Resolution/frame rate (Express/Express Plus):

• [4K DCI] 4096x2160p (29.97p, 25p, 24p, 23.98p)
• [4K UHD] 3840x2160p (29.97p, 25p, 24p, 23.98p)
• [HD] 1920x1080p (29.97p, 25p, 24p, 23.98p), 1920x1080i (59.94i, 50i), 1920x1080PsF, 1440x1080p, 1440x1080i, 1440x1080PsF, 1280x720p
• [SD] Video output format 720x486i (59.94i), 720x576i (50i)

Format support: 4K DCI, 4K UHD, HD, SD

• Connector (Elite/Pro/Express): BNC (3G/HD-SDI) x4
• Connector (Elite Plus/Pro Plus/Express Plus): DIN 1.0/2.3 (3G/HD-SDI) x8

Codec (4K DCI/4K UHD):

• AVI - Grass Valley HQX, Grass Valley lossless, Grass Valley uncompressed
• MXF - H.264/AVC, Grass Valley HQX, ProRes
• QuickTime - ProRes, ProRes4444, Grass Valley HQX
• MP4 - H.264/AVC
• XAVC - 4K Intra, QFHD Intra, QFHD Long422, QFHD Long
• XAVC S - H.264/AVC
• P2 - AVC-Intra 4K
• Windows Media - Windows Media Video
• Still Image - Targa, Windows Bitmap, JPEG, TIFF, PNG, GIF, DPX, YUV Bitmap, etc.

Codec (HD/SD):

• AVI - Grass Valley HQX, Grass Valley HQ, Grass Valley lossless, Grass Valley uncompressed, DVCPRO HD, DVCPRO50, DVCPRO25, DV
• MXF - MPEG-2, H.264/AVC, ProRes, DNxHD, Grass Valley HQX, Grass Valley HQ, DVCPRO HD, DVCPRO50, DVCPRO25, DV, D10/IMX, JPEG2000
• QuickTime - ProRes, ProRes 4444, XDCAM, XDCAM EX, H.264, MPEG-4, Grass Valley HQX, Grass Valley HQ, DVCPRO HD, DVCPRO 50, DVCPRO 25, DV, Motion JPEG, uncompressed
• MP4 -
• H.264/AVC audio input format

Digital input: SDI embedded audio (8 channels)

• Audio output format

Digital output: SDI embedded audio (8 channels)

• Monitor output: BNC x2 (for L ch/R ch)
• Headphone: Stereo jack x1
• time code
• Input: BNC x1
• Output: BNC x2

Reference

• Input (Elite/Pro/Express): BNC x1
• Input (Elite Plus/Pro Plus/Express Plus): DIN 1.0/2.3 x1

Mechanical specifications

• Dimensions (W x D x H): 16.9 x 21.6 x 5.5 in.
• Weight: 36.4 pounds
• Operating temperature: 41°F to 95°F
• Operating relative humidity: max. 80% (non-condensing)
• Electric power consumption: up to 200 W
