Skaarhoj ETH-GPI Link Dual
1 Year Warranty
Product highlights
- Control Popular Broadcast Devices
- 2 x 25-Pin Connectors, 16 GPO / 16 GPI
- UniSketch Web UI with Simple Dropdowns
- GPO with Relays Shorting to GND
- GPI with Isolators Shorted to GND
- USB and Cat 5e Cables Included
Subscribe To When In Stock
You have successfully subscribed to this product
Description

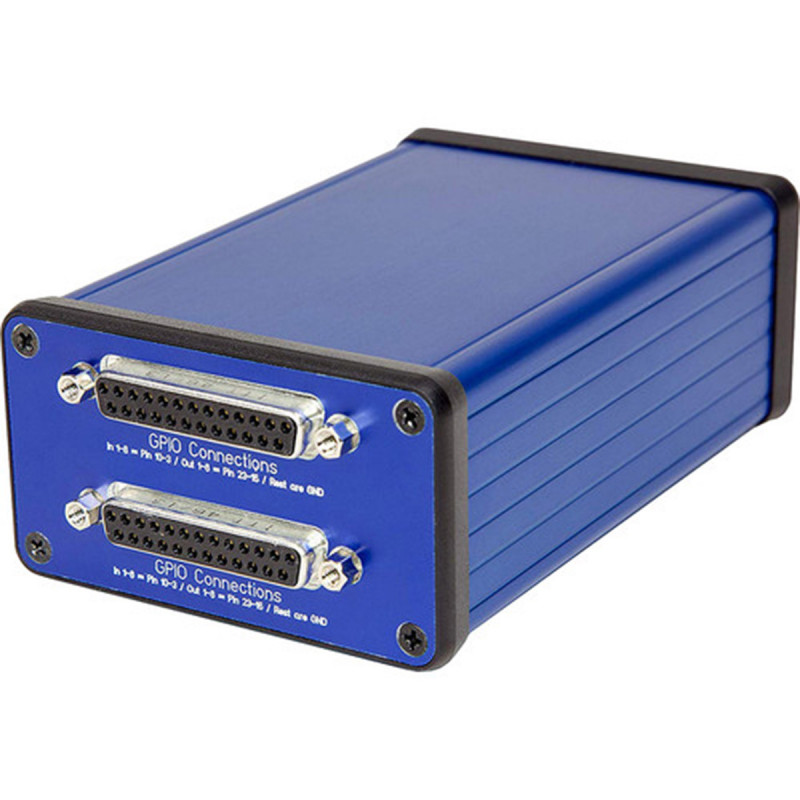

Skaarhoj ETH-GPI Link Dual
In my box
- SKAARHOJ ETH-GPI Link Dual
- 12V Power Supply (4.9')
- USB 2.0 Type-A to Micro-USB (3.3')
- Cat 5e UTP Networking Cable (6.5')
Skaarhoj ETH-GPI Link Dual
Connect and control popular broadcast devices with the 16-input/16-output ETH-GPI Link Dual from SKAARHOJ. Control tally lamps, trigger ATEM switcher routines, control a HyperDeck, change scopes on a SmartScope Duo, and route inputs/outputs on a Blackmagic VideoHub. A dropdown menu in the companion UniSketch OS Web UI allows you to easily define single or multiple input/output parameters.
The 16 inputs/outputs are all electrically separated with quality relays and optocouplers. GPO is implemented with relays shorting to GND, and GPI is implemented with optical isolators shorted to GND.
Technical sheet
- Connections : 2 x DB25 (16 GPO / 16 GPI)
- Connections : 1 x RJ45 with PoE (IEEE802.3af)
- Connections : 1 x USB (Program)
- Connections : 1 x Barrel Power Input 12 V (+)
- Power Consumption : 2.5 W
- Dimensions : 3.1 x 5.2 x 1.9"
- Weight : 0.64 lb
Data sheet
€838.80
Tax included
€699.00 No tax
refresh
Sur Commande - Habituellement expédié entre 3 et 21 jours
Le produit est en cours de réapprovisionnement et sera bientôt en stock.
€838.80
Tax included
€699.00 No tax
refresh
Sur Commande - Habituellement expédié entre 3 et 21 jours
Le produit est en cours de réapprovisionnement et sera bientôt en stock.
