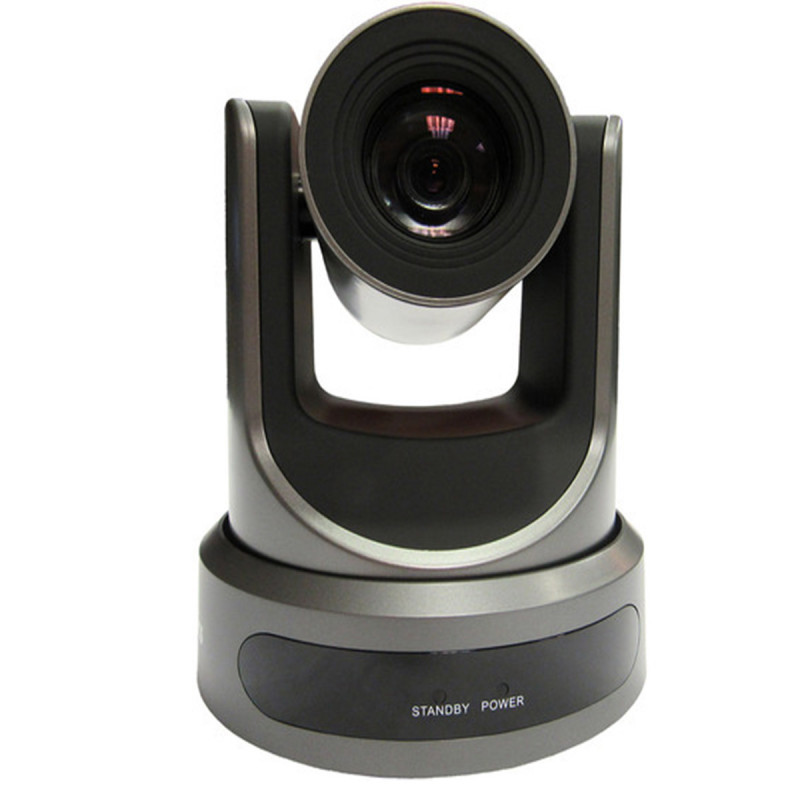

PTZOptics 30X-SDI-GY-G2 30X Optical Zoom 3G-SDI, HDMI, CVBS, IP
Photo(s) non contractuelle(s)
zoom_out_map
chevron_left chevron_right

PTZOptics 30X-SDI-GY-G2 30X Optical Zoom 3G-SDI, HDMI, CVBS, IP

5 Years Warranty

Product highlights
  • 2D and 3D noise reduction
  • RS-232 and RS-485 serial control
  • IP (LAN/WAN) control
  • H.264, H.265, and MJPEG streaming over RJ45 LAN port
  • Power over Ethernet or 12 VDC power supply
  • RTMP and RTSP IP streaming


€2,146.80 (tax incl.) €1,789.00 (tax excl.)
Tax included
ou réglez en :
Paiement en deux fois Paiement en trois fois Paiement en quatre fois avec Paiement fraction avec Alma

Sélectionnez Paiement fraction avec Alma au moment du paiement

en Paiement en deux fois en Paiement en trois fois en Paiement en quatre fois
Aujourd'hui*  €  €  €
Dans 1 mois  €  €  €
Dans 2 mois  €  €
Dans 3 mois  €
Total TTC  €  €  €
refresh Sur Commande - Habituellement expédié entre 3 et 21 jours Le produit est en cours de réapprovisionnement et sera bientôt en stock.
Description

PTZOptics 30X-SDI-GY-G2 30X Optical Zoom 3G-SDI, HDMI, CVBS, IP

In my box
  • PTZOptics 30X-SDI-GY-G2 30X Optical Zoom  3G-SDI, HDMI, CVBS, IP
  • Power Supply
  • IR Remote Control
  • RS-232C Cable
  • 2 x AAA Batteries

PTZOptics 30X-SDI-GY-G2 30X Optical Zoom  3G-SDI, HDMI, CVBS, IP

The 30X-SDI Gen 2 Live Streaming Broadcast Camera, in gray, from PTZOptics, features simultaneous 1080p 3G-SDI, HDMI, and IP streaming and offers a 30x optical zoom, which is suitable for large conferencing rooms and auditoriums. It also has a composite output that can be used on its own (without any of the other outputs concurrently) to deliver 576i/480i resolution. The camera streams up to 1080p60 resolution. When streaming over all three of the main outputs at the same time, you can select 1080p60 for SDI and HDMI while up to only 1080p30 for IP or you can select 1080p60 for IP and 1080p30 for SDI and HDMI.

The 30X-SDI Gen 2 can be powered over PoE or an included power supply. It offers RS-232 and RS-485 serial control, an audio line in for HDMI and IP streaming, and 10 presets via the included IR remote control or 255 via serial or IP control.

Technical sheet
  • Image Sensor : 1-Chip 1/2.7" CMOS Sensor
  • Signal-to-Noise Ratio : 55 dB
  • Sensitivity : f/1.8 at 0.5 lux
  • Shutter Speed : 1/30 to 1/10,000 sec
  • Built-In ND Filter : None
  • Flip / Mirror Support : Mirror (Vertical)
  • Optical Zoom Ratio : 30x
  • Focal Length : 4.4 to 132.6mm
  • Field of View : Horizontal: 2.28 to 60.7°
  • Field of View : Vertical: 1.28 to 34.1°
  • Maximum Aperture : f/1.8 to 2.8
  • Output Formats : SDI, HDMI, RJ45: 1920 x 1080p at 25, 30, 50, 60 fps
  • Output Formats : 1920 x 1080i at 50, 60 fps
  • Output Formats : 1280 x 720p at 25, 30, 50, 60 fps
  • Presets : 10 via IR
  • Presets : 255 via IP
  • Movement Range : Pan: 340° (-170 to 170°)
  • Movement Range : Tilt: 120° (-30 to 90°)
  • Supported Control Protocols : Pelco-D
  • Supported Control Protocols : Pelco-P
  • Supported Control Protocols : RS-232
  • Supported Control Protocols : RS-485
  • Video Output Connectors : 1 x BNC (3G-SDI)
  • Video Output Connectors : 1 x HDMI Type A
  • Video Output Connectors : 1 x RJ45
  • Video Output Connectors : 1 x 1/8" / 3.5 mm TS (Composite)
  • Audio I/O : 1 x 1/8" / 3.5 mm Stereo Input
  • Control Interface : 1 x 8-Pin Mini-DIN (RS-232) Input
  • Control Interface : 1 x 8-Pin Mini-DIN (RS-232) Output
  • Control Interface : 1 x 2-Wire (RS-485)
  • Other I/O : 1 x USB (Unspecified Type)
  • PoE Support : Yes
  • Power Connectors : 1 x JEITA (10.8 to 13 VDC)
  • Power Consumption : 12 W
  • Dimensions : 6.7 x 6.3 x 5.5"
  • Weight : 3 lb

Data sheet
PT30X-SDI-GY-G2-C
737993161073
