PTZOptics PT20X-NDI-ZCAM PTZOptics 20X 1080p NDI HX HD-SDI Box Camera
3 Years Warranty
Product highlights
- 1/2.7" CMOS Sensor
- Built-In 20x Optical Zoom Lens
- 4.42 to 88.5mm Focal Length
- 3.36 to 60.7° Angle of View
- Simultaneous SDI and IP/NDI Output
- 1080p60 Output over SDI, 1080p30 via IP
Déclinaisons
PTZOptics PT20X-NDI-ZCAM PTZOptics 20X 1080p NDI HX HD-SDI Box Camera
|
GARANTIE
|
3 |
| ANS |
PT20X-NDI-ZCAM-C
Subscribe To When In Stock
You have successfully subscribed to this product
Description
PTZOptics PT20X-NDI-ZCAM PTZOptics 20X 1080p NDI HX HD-SDI Box Camera
In my box
- PTZOptics 20x NDI|HX ZCAM 3G-SDI Box Camera
- AC Power Adapter
PTZOptics PT20X-NDI-ZCAM PTZOptics 20X 1080p NDI HX HD-SDI Box Camera

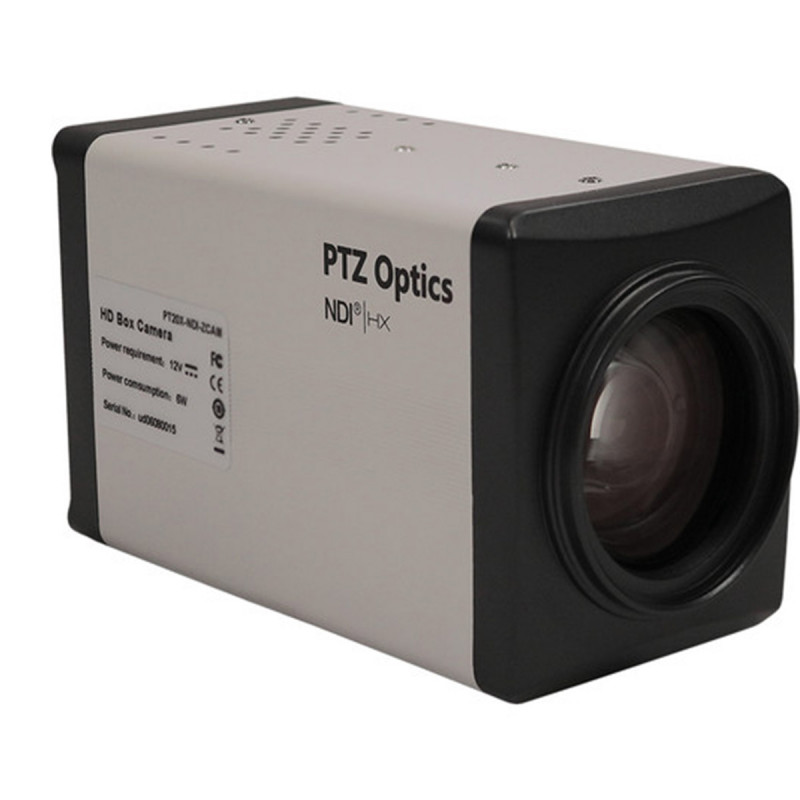

The 20x NDI|HX ZCAM 3G-SDI Box Camera from PTZOptics is designed to capture static shots of a specific area of your environment. It can be used in meeting rooms and conferencing applications as well as combined with PTZ cameras to provide more angle options in your setup. The camera features a built-in 20x optical zoom lens, which has a focal length of 4.42 wide to 88.5mm telephoto. The long zoom range allows getting tight shots from a distance, while at its widest, the lens captures an angle of view of 60.7°.
The camera offers up to 1080p60 output over 3G-SDI or up to 1080p30 over IP (NDI|HX or RTSP/RTMP). Streaming resolutions also include 720p120 and 480p240 high frame rate output. SDI and IP can be output simultaneously. The camera can be powered using an included power adapter or conveniently over Power-over-Ethernet. The same cable used for IP video and connectivity can also be used for PoE.
Technical sheet
- Sensor : 1/2.7" CMOS
- Effective Pixels : 2.07 MP
- Resolution : 1080p60/50/30/25, 1080i60/50, 720p60/50
- Resolution : IP/NDI|HX is Limited to 1080p30
- Scanning Mode : Progressive
- Lens : Built-In
- Lens : 4.42 - 88.5mm
- Lens : f1.8 - 2.8
- Optical Zoom : 20x
- Digital Zoom : 16x
- Minimum Illumination : 0.05 Lux at f/1.8, AGC On
- Shutter : 1/30 - 1/10000s
- White Balance : Auto, Indoor, Outdoor, One Push, Manual, VAR
- Backlight Compensation : Yes
- Digital Noise Reduction : 2D/3D DNR
- Video S/N Ratio : ≥55 dB
- Horizontal Angle of View : 3.36 to 60.7°
- Vertical Angle of View : 1.89 to 34.1°
- H & V Flip : Yes
- Image Freeze : Yes
- PoE : Yes, 802.3af
- Face Detection : No
- Number of Presets : 255
- Preset Accuracy : 0.1°
- Video Codecs : H.264, H.265, MJPEG
- Video Streams : First / Second Stream
- Streaming Resolution First Stream: : 1920 x 1080, 1280 x 720, 1024 x 576, 960 x 540, 640 x 480, 640 x 360
- Streaming Resolution Second Stream : 1280 x 720, 1024 x 576, 720 x 480, 720 x 408, 640 x 360, 480 x 270, 320 x 240, 320 x 180
- Streaming Bit Rate : 128 to 8192 Kb/s
- Streaming Bit Rate : Variable Rate, Fixed Rate
- Streaming Frame Rates : 50 Hz: 1 - 50 fps
- Streaming Frame Rates : 60 Hz: 1 - 60 fps
- Streaming Frame Rates : 720p120
- Streaming Frame Rates : 480p240
- Streaming Audio Standard : AAC
- Streaming Audio Rate : 96/128/256K
- Supported Protocols : TCP/IP, HTTP, RTSP, RTMP, Multicast, DHCP, ONVIF
- Video Output : 1 x 3G-SDI on BNC, 800 mV p-p, 75 Ohms, SMPTE 424M
- Network Interface : 1 x RJ45: 10/100/1000M Adaptive Ethernet Port
- Audio Input : 1 x 3.5 mm Audio Line In
- Communication Interface : 1 x RS-485 2-Pin Phoenix
- Communication Interface : Max Distance: 3937' / 1200 m
- Communication Interface : Protocol: VISCA/Pelco-D/Pelco-P
- Power Input : JEITA Type 12 VDC
- Input Voltage : 12 VDC
- Current Consumption : 1 A (Max)
- Operating Temperature : 14 to 104°F / -10 to 40°C
- Storage Temperature : -40 to 140°F / -40 to 60°C
- Power Consumption : 12 W (Max)
- MTBF : >30000 Hours
- Mount Type : 1/4"-20 Female
- Dimensions : 6.7 x 5.6 x 6.5"
- Weight : 3.3 lb
Data sheet
PT20X-NDI-ZCAM-C
Garantie 3 ans
PTZOptics PT20X-NDI-ZCAM PTZOptics 20X 1080p NDI HX HD-SDI Box Camera
€1,510.80
Tax included
€1,259.00 No tax
