TOPAS TX 4K, black enclosure, providing: 12G, 3G, Mon HD, G/L

1 year warranty

Product highlights

Especially for the 4K PTZ camera AW-UE150 by Panasonic
LEMO 3K fibre optic ports for a transmission range of more than 800 m (874.9 yd)

€4,817.28 (tax incl.) €4,014.40 (tax excl.)

Tax included

Subscribe To When In Stock

You have successfully subscribed to this product

Description

TOPAS TX 4K, black enclosure, providing: 12G, 3G, Mon HD, G/L

In my box

1 x TOPAS TX 4K

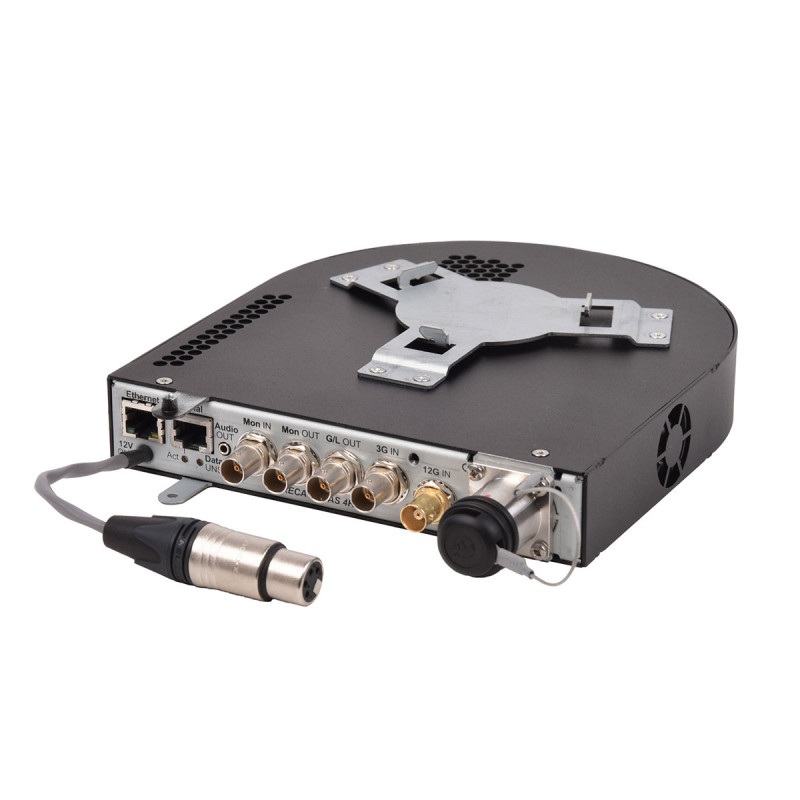

TOPAS TX 4K, black enclosure, providing: 12G, 3G, Mon HD, G/L

The TOPAS 4K is a high-quality fibre optic transmission system with LEMO 3K fibre optic connections for the 4K PTZ camera AW-UE150 by Panasonic. The system consists of the transmitter TOPAS 4K TX OC Black, which is mounted directly under the camera to save space, offers bidirectional transmission of all camera signals via SMPTE311 LEMO 3K fibre optic connections (12G-SDI, 3G-SDI and HD-SDI, Genlock, analogue audio, Ethernet, serial communication as well as power supply to the camera).

Technical sheet

Dynamic Range: 15 dB for control and 3G-SDI, 10 dB for 12G-SDI
Audio Impedance: 10 kOhm differential, non-floating (input) / 20 Ohm differential, non-floating (output)
Maximum Amplitude: +18 dB
Bandwith: 50 Hz - 15 kHz at ±0.5 dB (20 Hz - 20 kHz at -3 dB)
Distortion: 0.05 % at 1 kHz / 0 dBm
Signa to Noise Ratio: 90 dB (A-weighted)
Cooling: 1x Silent fan
Input
1x 12G-SDI via BNC
1x 3G-SDI via BNC
1x HD-SDI via BNC
Output
1x HD-SDI via BNC (Return)
1x Genlock via BNC (Composite Video / Black Burst / Tri-level Sync)
1x Audio (2-channel) via 2.5 mm jack
1x Power supply DC 4-pin XLR (12 V, 50 W)
Others
1x Fibre optic via LEMO 3K
1x Ethernet via RJ-45 (10 / 100 Mbps)
1x Serial (RS-485 / RS-422 / RS-232) via RJ-45 (also for Tally)
General Product Information:
Dimensions (W x H x D): 213 x 33 x 219 mm (8.39 x 1.3 x 8.62 in)
Weight: 1.45 kg (3.2 lbs)
Operating Temperature: -20° to +60° C (-4° to +140° F)
Operating Voltage: via AC adapter
Power Consumption: 8 W
Colour: Black
