Technical sheet
PHYSICAL
Length: 276 mm (10.9 in.)
Width: 176 mm (7.0 in.)
Height: 356 mm (14.1 in.)
Weight: 7.3 kg (16.1 lbs.)
DYNAMIC EFFECTS
Color mixing: RGBW
Color presets: 48 color presets, virtual color wheel effects
Color temperature control: Variable 1,800 - 12,850 K
Electronic dimming: 0 - 100%, four dimming curve options
Strobe and pulse effects: Variable speed and action, random strobe
Electronic shutter effect: Instant open and blackout
Zoom: Motorized, 4.2 - 58°
Pan: 540°
Tilt: 260°
CONTROL AND PROGRAMMING
Control options: DMX, RDM
DMX channels: 18
16-bit fine control: Dimming, RGB, zoom, pan and tilt
LED color management modes: Raw, extended and calibrated
DMX address setting: Control panel with LCD display
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Fixture software update: USB memory device or over DMX link
OPTICS
Light source: 7 x 40 W RGBW Osram LEDs
Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
Beam angle (half-peak): 4.2° - 38.7°
Field angle (one-tenth peak): 5.1° - 58.6°
Cutoff angle (3%): 5.7° - 69.6°
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration
*Figure obtained under manufacturer's test conditions
PHOTOMETRIC DATA
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
CONSTRUCTION
Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP 20
INSTALLATION
Mounting points: 2 x quarter‐turn fastener receptacles, 106.5 mm
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any
Minimum distance to combustible materials: 0.5 m (1.7 ft.)
Minimum distance to illuminated surfaces: 1 m (3.3 ft.)
Minimum clearance around fan and air vents: 0.5 m (1.7 ft.)
CONNECTIONS
AC power input/output: Neutrik PowerCON TRUE1 TOP
DMX and RDM data in/out: Neutrik 5-pin locking XLR
ELECTRICAL
AC power: 100-240 VAC (nominal), 50/60 Hz
Typical power consumption: 315 W
Typical half-cycle RMS inrush current at 240 VAC: 8.7 A
Power supply unit: Auto-ranging electronic switch mode
*Per IEC 60898/UL489/CSA C22.2 No. 5
Recommended Miniature Circuit Breaker: Type D*
MAXIMUM POWER AND CURRENT
100-120 V, 60 Hz : 3.8 A, 340 W, Power factor 0.993
220-240 V, 50 Hz: 1.5 A, 340 W, Power factor 0.966
*Measurements made at nominal voltage with all LEDs at full intensity.
Allow for a deviation of +/- 10%.
THERMAL
Cooling: Forced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): -10° C (14° F)
Total heat dissipation (calculated): 1195 BTU/hr.
*Calculated, +/- 10%, at full intensity, full white
ACOUSTIC DATA
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.0 dB(A)
ENVIRONMENTAL
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant

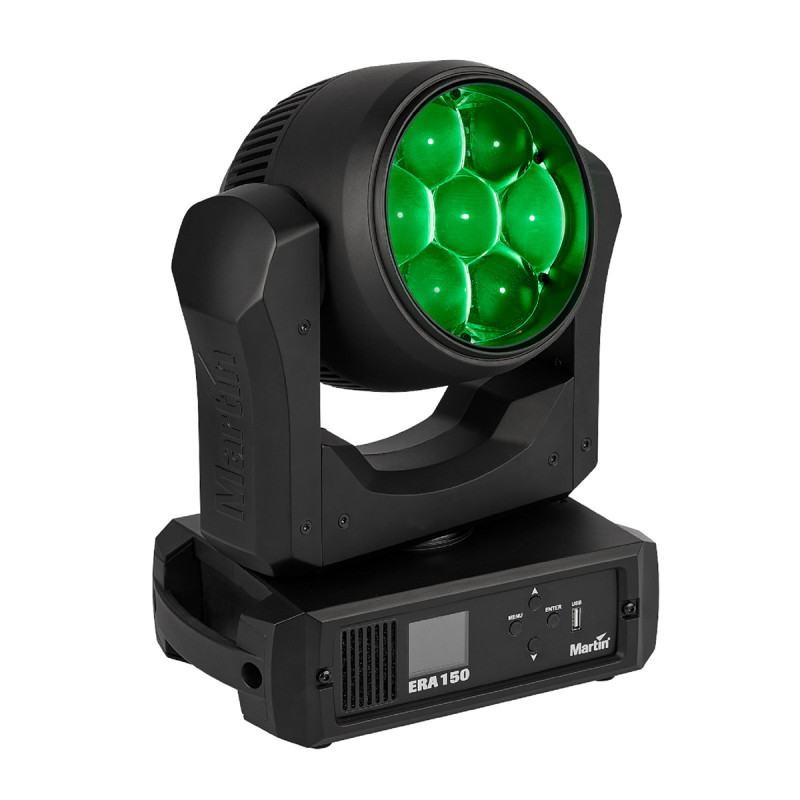

Fiche ERA-150-WASH
