Technical sheet
PHYSICAL
Length: 312 mm (12.3 in.)
Width: 287 mm (11.3 in.)
Height: 401 mm (15.8 in.) with bracket
Weight: 7.8 kg (17.2 lbs.)
DYNAMIC EFFECTS
Color mixing: RGBW
Color presets: 48 color presets, virtual color wheel effects
Color temperature control: Variable 1,800 – 12,850K
Electronic dimming: 0 - 100%, four dimming curve options
Strobe and pulse effects: Variable speed and action, random strobe
Electronic shutter effect: Instant open and blackout
Zoom: Motorized
CONTROL AND PROGRAMMING
Control options: DMX, RDM
DMX channels: 14
16-bit fine control: Dimming, RGB, zoom
LED color management modes: Raw, extended and calibrated
DMX address setting: Control panel with OLED display
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20
Firmware update: via DMX using Martin Companion
OPTICS
Light source: 7 x 40 W RGBW Osram LEDs
Minimum LED lifetime: 50,000 hours (to >70% luminous output)*
Beam angle (half-peak): 4.2° - 38.7°
Field angle (one-tenth peak): 5.1° - 58.6°
Cutoff angle (3%): 5.7° - 69.6°
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration
*Figure obtained under manufacturer's test conditions
PHOTOMETRIC DATA
Wide beam: 3525 lumens
Narrow beam: 1445 lumens
Fixture Center Intensity Narrow Beam: 390083 cd
Fixture Center Intensity Wide beam: 9957 cd
CRI (Color Rendering Index) : >70
CQS (Color Quality Scale): 83
TM-30 Rf (IES TM-30-15 Fidelity Index): 77
TM-30 Rg (IES TM-30-15 Gamut Index): 117
TLCI (Television Lighting Consistency Index): 61
CCT: 6500 Kelvin
LED refresh rate - Standard Mode: 3600 Hz
LED refresh rate - Theatre Mode: 19200 Hz
*All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
CONSTRUCTION
Housing: Aluminum and composite
Filter mount: 191 x 191 mm (7.5 x 7.5 in.)
Color: Black
Protection rating: IP 20
INSTALLATION
Mounting points: Adjustable bracket, surface or truss mount (fits Martin Omega Bracket)
Location: Not for household use, indoor use in dry location only
Orientation: Any
Minimum distance to combustible materials: 0.5 m (1.7 ft.)
Minimum distance to illuminated surfaces: 1 m (3.3 ft.)
Minimum clearance around fan and air vents: 0.5 m (1.7 ft.)
CONNECTIONS
AC power input/output: Neutrik PowerCON TRUE1 TOP
DMX and RDM data in/out: Neutrik 5-pin locking XLR
ELECTRICAL
AC power: 100-240 V nominal, 50/60 Hz
Typical power consumption: 300 W
Typical half-cycle RMS inrush current at 240 VAC: 8.7 A
Power supply unit: Auto-ranging electronic switch mode
MAXIMUM POWER AND CURRENT
100-120 V, 60 Hz : 3.0 A, 320 W, Power factor 0.991
220-240 V, 50 Hz: 1.7 A, 320 W, Power factor 0.941
*Measurements made at nominal voltage with all LEDs at full intensity.
Allow for a deviation of +/- 10%.
THERMAL
Maximum surface temperature: 65° C (149° F)
Cooling: Forced air (temperature regulated, low noise)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): -10° C (14° F)
Total heat dissipation (calculated): 1170 BTU/hr.
ACOUSTIC DATA
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 37.1 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode low): 33.0 dB(A)
ENVIRONMENTAL
RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant

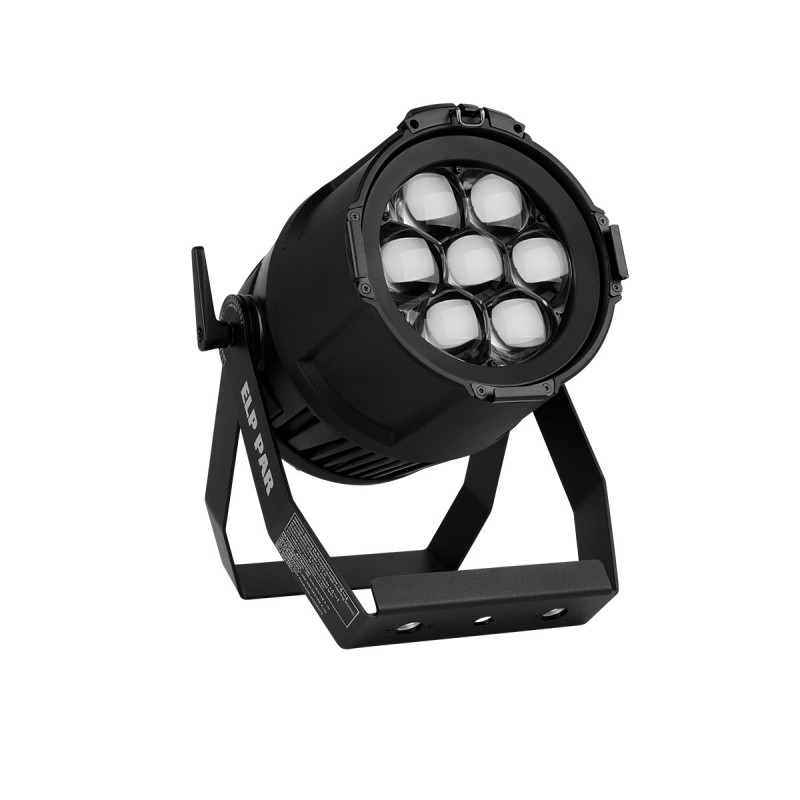

Fiche ELP-PAR
