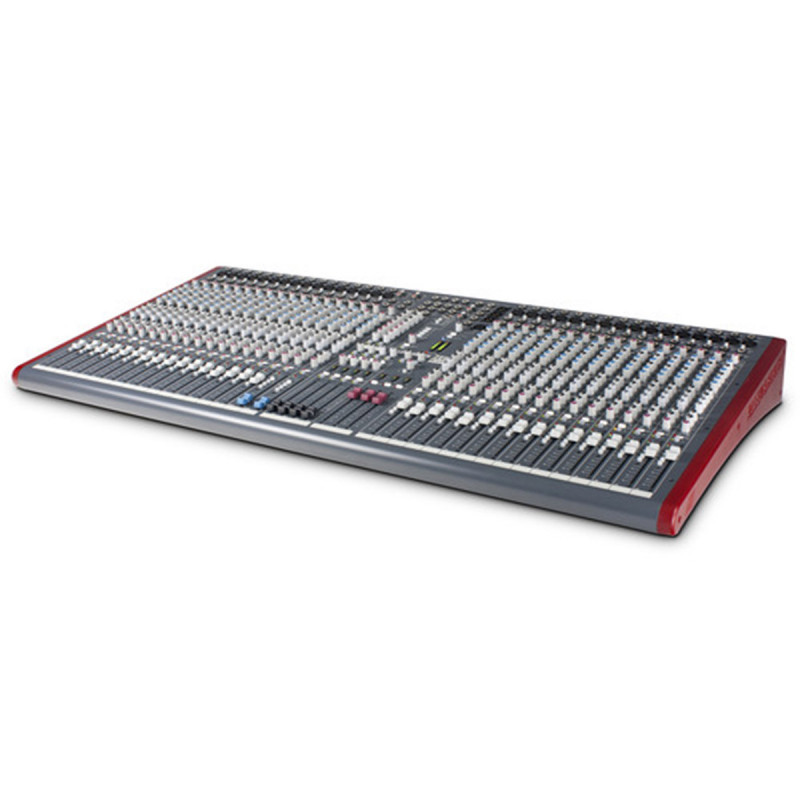

The Allen & Heath ZED-436 is a 36-channel analog mixer offering versatile I/O and a user-friendly workflow for use in home and project studio recording, houses of worship, and live sound reinforcement. The 32 mono channels feature Neutrik XLR mic and 1/4" line inputs, DuoPre preamps with phantom power and bountiful gain, 1/4" insert points, and 4-band EQ with sweepable mids, while the two stereo channels have 1/4" inputs and 4-band EQ with fixed mids. All channels are equipped with long-throw 100mm faders, solo and mute buttons, and independent aux send knobs.

The six aux sends are ideal for routing to floor monitors and outboard time-based effects. A USB 1.1 port delivers 2-channel send and return capabilities via a Mac or Windows computer. There are stereo and mono main outputs in addition to four group outputs, two matrix outs, and two headphone outputs; multi-segment LED meters clearly indicate your group and main output levels. Patch additional stereo sources into the RCA stereo returns and 2-track input. The 2-track RCA output is handy for recording your mix to an external device such as a cassette deck or computer soundcard. The ZED-36 also boasts an external talkback mic input with an adjustable level and the ability to route the talkback signal to the first four aux's or to all main outputs.

32 Mono Inputs

There are 32 mono input channels with Neutrik connectors—XLR for balanced mic signals, and 1/4" for balanced/unbalanced line-level sources

Two Stereo Inputs

The two stereo input channels feature 1/4" connectors to accommodate stereo devices such as keyboards, synth modules, and external effects processors

Flexible EQ Section

Based on the acclaimed GL2400 EQ, all mono channels feature 4-band EQ with sweepable midrange bands, while the stereo channels offer 4-band EQ with fixed frequencies on all bands

Inserts

Inserts on all mono channels, the group outputs, and the main outputs provide easy integration of analog outboard gear such as hardware compressors and equalizers

Direct Outputs

1/4" direct outputs on all mono channels enable simple routing to a multi-track recorder

Independent Aux Sends

Six auxiliary sends—two pre-fader, two post-fader, and two switched pre- or post-fader— with independent level controls allow versatile signal routing to cue mixes, floor monitors, and external effects processors

4-Bus Group Outputs

Four group outputs can be used for easy control of submixes, or for applying signal processing such as compression to groups of signals using the group insert connectors

USB Connection

A USB 1.1 port allows direct connection to Mac and Windows computers for stereo audio I/O

Flexible Outputs

The ZED-436 offers balanced XLR main outputs (stereo and mono) with inserts, 1/4" and 3.5mm stereo headphone outputs, and two matrix outputs

Integrated Talkback Facilities

Connect an external mic to the XLR talkback mic input, then send it to the first four aux outputs or to all main outputs
