Brand ALLEN & HEATH

Photo(s) non contractuelle(s)

Allen & Heath Table de mixage ZED-12FX

1Year Warranty

Product highlights

Stereo returns & playback
All inputs feature gain control
48V microphone phantom power
12-bar meters
Mono/stereo function on auxes 1 & 2
Stereo monitor outs

€722.00 (tax incl.) €601.67 (tax excl.) Économisez - €83.00 (tax incl.)

€639.00 (tax incl.) €532.50 (tax excl.)

Tax included

ou réglez en :

avec $Paiement fraction avec Alma$

Sélectionnez $Paiement fraction avec Alma$ au moment du paiement

Total TTC	€	€	€
	en	en	en
Aujourd'hui*	€	€	€
Dans 1 mois	€	€	€
Dans 2 mois		€	€
Dans 3 mois			€

Subscribe To When In Stock

You have successfully subscribed to this product

Description

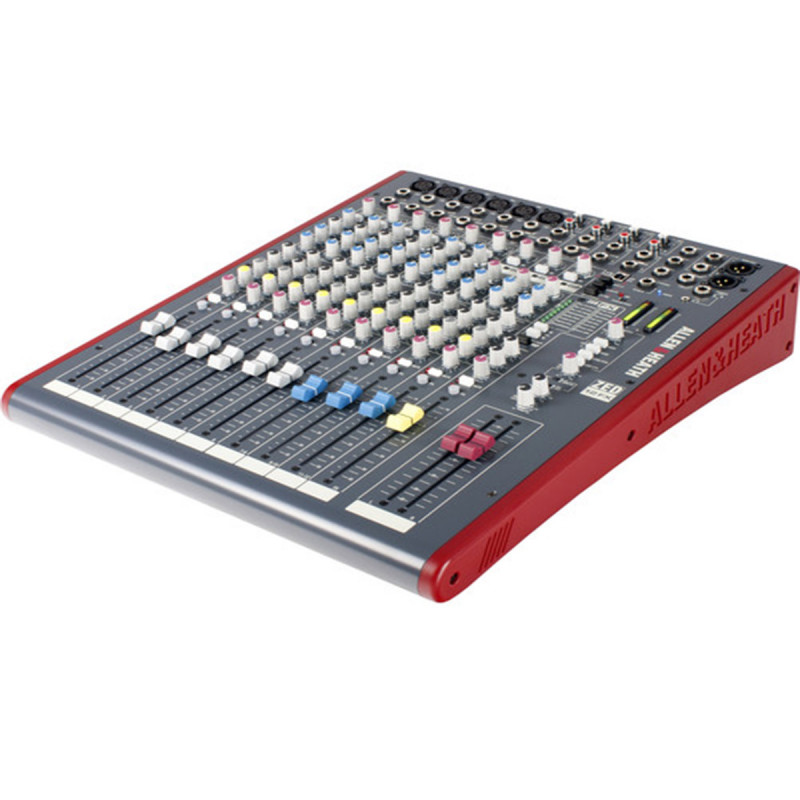

Allen & Heath Table de mixage ZED-12FX

In my box

Allen & Heath ZED-12FX 12-Channel Multipurpose USB Mixer with Effects
USB Cable
Power Cable

Allen & Heath Table de mixage ZED-12FX

The multipurpose Allen & Heath ZED-12FX mixer combines six mic/line inputs, three stereo inputs for effect returns and portable music players or keyboards, a 24-bit effects processor, and a USB digital audio interface compatible with Mac and Windows computers-in a compact and portable package small enough for carrying to your gig, whether recording live or in the studio.

Channels 1 through 6 can be accessed through balanced XLR or 1/4" mic/line inputs and feature low-noise DuoPre preamps with 69 dB of gain. They are also equipped with responsive, 3-band swept-mid EQs, which utilize MusiQ technology to optimize the Q factor proportional to the amount of boost or attenuation.

The built-in DSP engine offers sixteen effects to choose from, ranging from classic reverbs and delays to cascaded delays with reverbs and shimmering flanger and chorus effects. Delay tempo can be set on the fly using the convenient TAP button.

The ZED-12FX offers a set of four Aux/FX sends, 48V microphone phantom power, XLR main stereo outputs with inserts, a comprehensive monitoring section with two headphone outputs, and a separate monitor speaker output.

Technical sheet

Number of analog input channels: 12
Number of microphone preamps: 6
Analog output channels: 1 x stereo main output
Analog output channels: 1 x mono main output
Analog Output Channels: 1 x Stereo ALT Main Out
Analog Output Channels: 3 x Mono Auxiliary Send Output
Analog Output Channels: 1 x Stereo Tape/Record Out
Analog output channels: 1 x stereo headphone output
Built-in effects: Yes
Sampling rate: AD/DA conversion 32 / 44.1 / 48 kHz
Sampling rate: DSP 48kHz
Shallow: 16 bit
PSD: 24 bit
Headroom: +21 dB
EIN: -127 dBu at maximum gain (150 ohm input)
Analog Inputs: 6 balanced/unbalanced 1/4" TRS line inputs
Analog inputs: 6 balanced/unbalanced 1/4" TRS line inputs (3 stereo pairs)
Analog inputs: 1 stereo RCA return
Analog inputs: 6 x 1/4" TRS channel inserts
Analog Inputs: 2 x 1/4" TRS Main Insert
Analog Inputs: 6 x 3-pin XLR balanced mic input
Analog outputs: 1 x 1/4" TRS headphone output
Analog outputs: 1 x 1/8" / 3.5 mm TRS headphone output
Analog Outputs: 1 x stereo RCA Tape output
Analog outputs: 1 x stereo RCA Alt output
Analog outputs: 2 x 1/4" Aux Send (pre-fader)
Analog outputs: 1 x 1/ 4" auxiliary output (post-fader)
Analog outputs: 1 x 1/4" effects send (post-fader)
Analog outputs: 2 x 3-pin XLR balanced main outputs
Analog outputs: 1 x 1/4" mono main/sum output (post-fader)
Phantom power: +48V, on/off selectable
USB: 1 x USB Type-B (USB 1.1, I/O)
USB I/O capability: 2 in / 2 out
Operating System Compatibility: macOS
Operating System Compatibility: Windows
AC input power: 100 to 240 VAC, 50/60 Hz
Power Consumption: 40W (Max)
Rack Mountable: No
Size: 15.2 x 18.3 x 3.9"
Mass: 14.3 lbs
