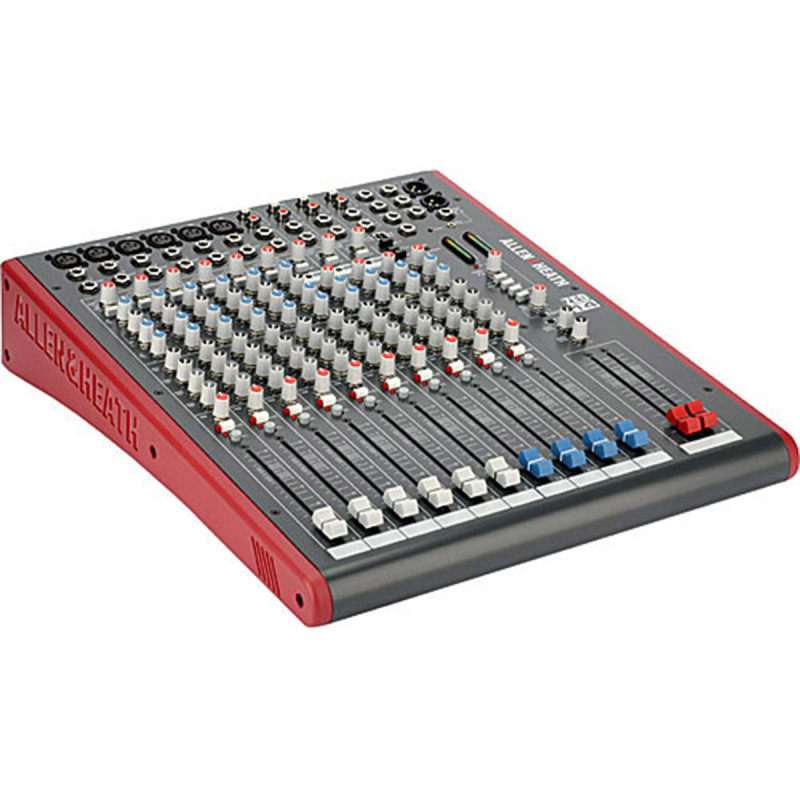

Allen & Heath ZED-14 Mixeur compact 14 canaux
Photo(s) non contractuelle(s)
zoom_out_map
chevron_left chevron_right

Allen & Heath ZED-14 Mixeur compact 14 canaux

1 year warranty

Product highlights
  • 6 mono channels
  • Neutrik mic XLR
  • Neutrik 1/4 inch jacks
  • Channel insert
  • Super wide gain ‘DuoPre’ mic line input
  • 3 band EQ with MusiQ
  • 4 auxes
  • Illuminated mute
  • Sound image pan
  • Illuminated PFL & peak warning indicator
  • ALPS 100mm faders
  • 4 stereo channels with 2-band EQ and inputs for extra sources
  • Stereo returns & playback
  • All inputs with level control
  • 12 bar meters
  • Mono/stereo function on auxes 1&2
  • Monitor output section
  • Alt stereo output source
  • Configurable USB stereo audio in/out
  • Rack ears available
Déclinaisons

Allen & Heath Table de mixage ZED-24

GARANTIE
 1
AN
ZED-24

Allen & Heath ZED-14 Mixeur compact 14 canaux

GARANTIE
 1
AN
ZED-14

Allen & Heath Table de mixage ZED-18

GARANTIE
 1
AN
ZED-18


€555.00 (tax incl.) €462.50 (tax excl.) Économisez - €57.00 (tax incl.)
€498.00 (tax incl.) €415.00 (tax excl.)
Tax included
refresh Sur Commande - Habituellement expédié entre 3 et 21 jours Le produit est en cours de réapprovisionnement et sera bientôt en stock.
Description

Allen & Heath ZED-14 Mixeur compact 14 canaux

In my box
  • Allen & Heath ZED-14 Compact 14-Channel Analog Mixer
  • USB Cable
  • Power Cable

Allen & Heath ZED-14 Compact 14-Channel Analog Mixer with USB Connection

The Allen & Heath ZED-14 is a compact 14-channel analog mixer offering versatile I/O and a user-friendly workflow for use in home and project studio recording, houses of worship, and live sound reinforcement. The six mono channels feature Neutrik XLR mic and 1/4" line inputs, DuoPre preamps with phantom power and bountiful gain, 1/4" insert points, and 3-band EQ, while the four stereo channels have 1/4" inputs and 2-band EQ. All channels are equipped with long-throw 100mm faders, solo and mute buttons, and independent aux send knobs.

The four aux sends are ideal for routing to floor monitors and outboard time-based effects. A USB 1.1 port delivers 2-channel send and return capabilities via a Mac or Windows computer. There are stereo and mono main outputs in addition to alt and headphone outputs, and dual 12-segment LED meters that clearly indicate your master output level. Patch additional stereo sources into the RCA stereo return and 2-track inputs, then route them to the stereo bus, or mix them into the stereo channels. The stereo RCA output is handy for recording your mix to an external device such as a cassette deck or computer soundcard.

6 Mono Inputs

There are six mono input channels with Neutrik connectors—XLR for balanced mic signals, and 1/4" for balanced/unbalanced line-level sources

Four Stereo Inputs

The four stereo input channels feature 1/4" connectors to accommodate stereo devices such as keyboards, synth modules, and external effects processors

Flexible EQ Section

All mono channels feature 3-band EQ with sweepable midrange, while the stereo channels offer 2-band EQ

Inserts

Inserts on all mono channels and the stereo output provide easy integration of analog outboard gear such as hardware compressors and equalizers

Independent Aux Sends

Four mono aux sends with independent level controls allow versatile signal routing to floor monitors and external effects processors

USB Connection

A USB 1.1 port allows direct connection to Mac and Windows computers for stereo audio I/O

Flexible Outputs

The ZED-14 offers balanced XLR stereo main outputs, a 1/4" mono main output, 1/4" and 3.5mm stereo headphone outputs, and a source-selectable stereo alt output

Technical sheet
  • Total # Of Inputs : 14
  • Mic/Line Inputs : 6 x 3-Pin XLR Female Mic Inputs (Balanced)
  • Mic/Line Inputs : 6 x 1/4" TRS Line Inputs (Balanced/Unbalanced)
  • Stereo Line Inputs : 8 x 1/4" TRS Line Inputs (Four Stereo Pairs, Balanced/Unbalanced)
  • In-Line Inputs/Returns : No
  • Aux Sends : 4 x 1/4" TRS Mono (Balanced)
  • Aux Returns : 2 x RCA Coaxial Line Inputs (One Stereo Pair, Unbalanced)
  • Inserts : 6 x 1/4" TRS on Mono Channels (Unbalanced)
  • Inserts : 2 x 1/4" TRS on Stereo Bus (Unbalanced)
  • BUS (Group) Outputs : No
  • Main Outputs : 2 x 3-Pin XLR Male (One Stereo Pair, Balanced)
  • Main Outputs : 1 x 1/4" TRS Mono (Balanced)
  • Monitor Outputs : 2 x RCA Coaxial Alt Outputs (One Stereo Pair, Unbalanced)
  • Monitor Outputs : 1 x 1/4" TRS Stereo Headphone Output (Unbalanced)
  • Monitor Outputs : 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output (Unbalanced)
  • 2-Track I/O : 2 x RCA Coaxial 2-Track Input (One Stereo Pair, Unbalanced)
  • 2-Track I/O : 2 x RCA Coaxial 2-Track Output (One Stereo Pair, Unbalanced)
  • ALT I/O : 1 x USB Type-B (2-Channel Send/Return)
  • EQ Section : High (All Channels): ±15 dB at 12 kHz
  • EQ Section : Mid (Mono Channels): ±15 dB at Selectable Frequency (120 Hz to 4 kHz, Sweepable)
  • EQ Section : Low (All Channels): ±15 dB at 80 Hz
  • High-Pass Filter : 12 dB/Octave at 100 Hz, Switchable
  • Solo/Mute : Mute and PFL Solo
  • Channel Level Control : 100 mm Fader
  • Trim/Gain Control : Rotary Control
  • Gain Range : Mic Inputs: -6 to +63 dB
  • Gain Range : Line Inputs: -10 to +26 dB
  • Gain Range : Stereo Inputs: -∞ to +10 dB
  • Gain Range : Faders: -∞ to +10 dB
  • Gain Range : Returns: -∞ to +10 dB
  • Gain Range : Aux Masters: -∞ to +6 dB
  • Gain Range : Alt Out: -∞ to +6 dB
  • Phantom Power : +48 VDC, Globally Selectable
  • Metering : Dual 12-Segment LEDs
  • Metering : Peak LED per Channel
  • USB Specification : USB 1.1 Compliant
  • Bit Depth : USB: 16-Bit
  • Sample Rates : USB: 32 kHz, 44.1 kHz, or 48 kHz
  • Nominal Input Level : Mic Input: -63 to +6 dBu
  • Nominal Input Level : Mono Line Input: -26 to +10 dBu
  • Nominal Input Level : Stereo Line Input: 0 dBu (+10 dB with Control Off)
  • Nominal Input Level : Insert Point: 0 dBu
  • Maximum Input Level : Mic Input: +17 dBu
  • Maximum Input Level : Mono Line Input: +30 dBu
  • Maximum Input Level : Insert Point: +21 dBu
  • Nominal Output Level : 0 dBu
  • Maximum Output Level : +21 dBu
  • Frequency Response : Mic In to Main Out (30 dB Gain): 20 Hz to 20 kHz (+0.5 dB, -1 dB)
  • Frequency Response : Line In to Main Out (0 dB Gain): 10 Hz to 30 kHz (+0.5 dB, -1 dB)
  • Frequency Response : Stereo In to Main Out: 10 Hz to 30 kHz (+0.5 dB, -1 dB)
  • THD + N : Mic In to Main Out (0 dB Gain, 1 kHz, +10 dBu Out): 0.004%
  • THD + N : Mic In to Main Out (30 dB Gain, 1 kHz): 0.014%
  • THD + N : Line In to Main Out (0 dB Gain, 1 kHz, 0 dBu): 0.005%
  • THD + N : Stereo In to Main Out (0 dB Gain, 1 kHz, +10 dBu): 0.003%
  • Headroom : Analog Headroom from Nominal (0 VU): 21 dB
  • Headroom : USB In and Out Headroom from Nominal (0 VU): 14 dB
  • Noise : Mic Pre EIN: -127 dBu (Maximum Gain, 150-Ohm Input, 22 Hz to 22 kHz)
  • Noise : Main Out: -84 dBu (L/R Faders at 0, 22 Hz to 22 kHz)
  • Power Consumption : 40 W Maximum
  • Power Requirements : 100 to 240 VAC, 47 to 63 Hz
  • Dimensions : 15.2 x 3.9 x 18.3" / 38.5 x 9.8 x 46.5 cm
  • Weight : 14.3 lb / 6.5 kg
