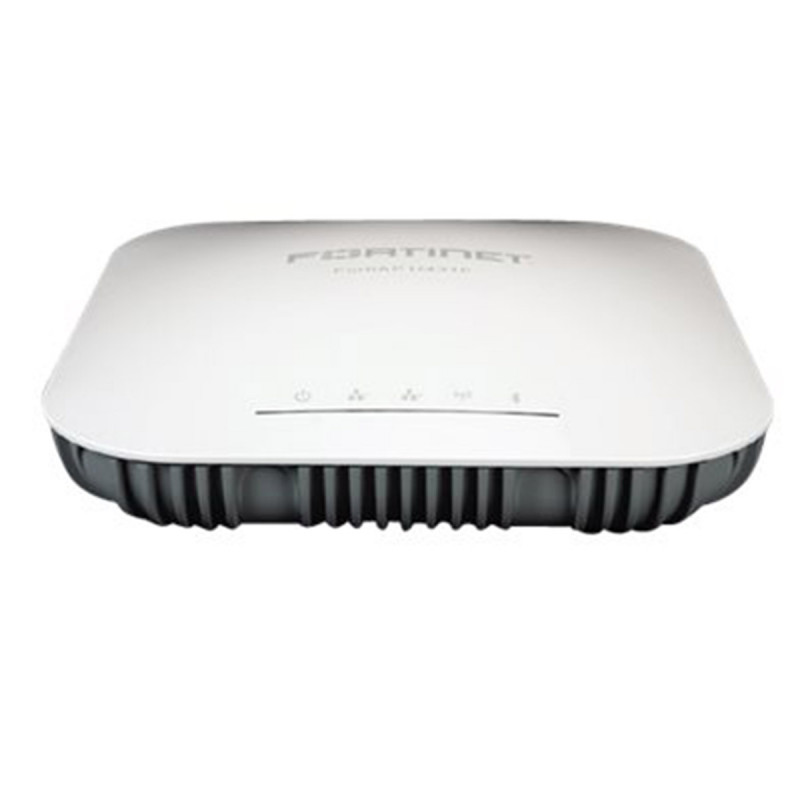

Fortinet FAP-431F Points d'accès sans fil 802.11ax - 2,40 GHz, 5 GHz

Limited lifetime warranty

Product highlights

802.11ax
Tri-Radio 2.4 GHz + 5 GHz + scanning
5 Internal/External Antennas
4x4 MU-MIMO
Up to 1,147 Mbps + 2,402 Mbps

€1,454.16 (tax incl.) €1,211.80 (tax excl.)

Tax included

ou réglez en :

avec $Paiement fraction avec Alma$

Sélectionnez $Paiement fraction avec Alma$ au moment du paiement

Total TTC	€	€	€
	en	en	en
Aujourd'hui*	€	€	€
Dans 1 mois	€	€	€
Dans 2 mois		€	€
Dans 3 mois			€

Subscribe To When In Stock

You have successfully subscribed to this product

Description

Fortinet FAP-431F Points d'accès sans fil 802.11ax - 2,40 GHz, 5 GHz

In my box

1 x FAP-431F
1 x Mount kit for Ceiling, T-Rail and Wall

Fortinet FortiAP 431F 4x4 MU-MIMO Access Point with Dual Radio, RP-SMA External Antennas

This high throughput enterprise class 802.11ax indoor AP provides three radios and 8 spatial streams. This top-of-the line access point supports OFDMA, a 2.5 Gigabit Ethernet port, plus an additional 1 Gbps Ethernet port for PoE diversity. The AP can provide 24/7 scanning across both bands while still providing access on both the 2.4 and 5 GHz bands. The integrated BLE radio can be used for beacons and locationing applications.

Unified management console simplifies operations, ensuring consistency in effective policy enforcement and compliance.

Wireless LAN security done right, from the leader in network security. Integrated Firewall, IPS, Application Control, and Web Filter protect the wireless LAN from the latest security threats.

Protects the network from advanced wireless threats and satisfies PCI DSS compliance.

Technical sheet

Hardware Type : Indoor AP
Number Of Radios : 3 + 1 BLE
Number Of Antennas : 5 Internal + 1 BLE Internal
Antenna Type And Peak Gain : PIFA: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz
Frequency Bands (Ghz) : 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Radio 1 Capabilities : Frequency Band: 2.4 GHz
Radio 1 Capabilities : Channel width: 4x4 20/40 MHz
Radio 1 Capabilities : Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024
Radio 1 Capabilities : MIMO chains: 4x4 service
Radio 2 Capabilities : Frequency Band: 5.0 GHz
Radio 2 Capabilities : Channel width: 4x4 20/40/80MHz and 2x2 160MHz
Radio 2 Capabilities : contiguous Modulation: BPSK, QPSK, QAM64, QAM256, and QAM1024
Radio 2 Capabilities : Mimo chains: 4x4 service
Radio 3 Capabilities : Frequency band: 2.4/5.0 GHz MIMO chains: 1x1 frequency scanning
Maximum Data Rate : Radio 1: up to 1147 Mbps
Maximum Data Rate : Radio 2: up to 2402 Mbps
Maximum Data Rate : Radio 3: scan only
Bluetooth Low Energy Radio : Bluetooth scanning and iBeacon advertisement @ 6 dBm max TX power
Interfaces : 1x 100/1000/2500 Base-T RJ45,
Interfaces : 1 x 10/100/1000 Base-T RJ45,
Interfaces : 1x Type A USB, 1x RS-232 RJ45 Serial Port
Power Over Ethernet (Poe) : 802.3at PoE default
Power Over Ethernet (Poe) : 1 port powered by 802.3at or 2 ports powered by 802.3af
Power Over Ethernet (Poe) : - Full System functionality + USB support 1 port is connected to 802.3af - No USB support, Operate
Power Over Ethernet (Poe) : in 2x2 mode with reduced power R1/R2 17dBm(Tx power)
Simultaneous Ssids : Up to 16 (14 if background scanning enabled)
Eap Type(S) : EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication : WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist and allowlist
Maximum Tx Power (Conducted) : Radio 1: 2.4 GHz 24 dBm / 251 mW (4 chains combined)*
Maximum Tx Power (Conducted) : Radio 2: 5 GHz 23 dBm / 200 mW (4 chains combined)*
Maximum Tx Power (Conducted) : Radio 3: NA
Kensington Lock : Yes
Ieee Standards : 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i,802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w,
Ieee Standards : 802.11ac, 802.11ax (Wi-Fi 6), 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3bz
Ssid Types Supported : Local-Bridge, Tunnel, and Mesh
Per Radio Client Capacity : 512 clients per radio (Radio1 and Radio2)
Cellular Co-Existence : Yes
Led Off Mode : Yes
Reset Button : Yes
Advanced 802.11 Features :
Ofdma : Yes (UL and DL)
2.4 Ghz Ofdma : Yes
Spatial Reuse (Bss Coloring) : Yes
Ul Mu-Mimo 802.11Ax Mode : Yes
Dl-Mu-Mimo : Yes
He-Mu-Mimo : Yes
Enhanced Target Wake Time (Twt) : Yes
Zerowait Dfs/Agile Dfs : No
Wireless Monitoring Capabilities :
Rogue Scan Radio Modes : Background, Dedicated
Wips / Wids Radio Modes : Background, Dedicated (recommended)
Packet Sniffer Mode : Yes
Spectrum Analyzer : Yes
Length X Width X Height : 8.27 x 8.27 x 2.22 inches (210 x 210 x 56.5 mm)
Weight : 2.16 lbs (0.98 kg)
Mounting Options : Ceiling, T-Rail, and Wall
Included Accessories : Mount kit for Ceiling, T-Rail and Wall
Power Supply : SP-FAP400-PA-XX or GPI-130
Power Consumption (Maximum) : 24.5 W
Humidity : 5 - 90% non condensing
Operating / Storage Temperature : 32–113°F (0–45°C) / -31–-94°F (-35–70°C)
Directives : Low Voltage Directive • RoHS
Ul2043 Plenum Material : No
Mean Time Between Failures : > 10 Years
Surge Protection Built In : Yes
Hit-Less Poe Failover : Yes
Wifi Alliance Certified : Yes
Dfs : FCC, IC, CE, Japan, Korea, Taiwan
