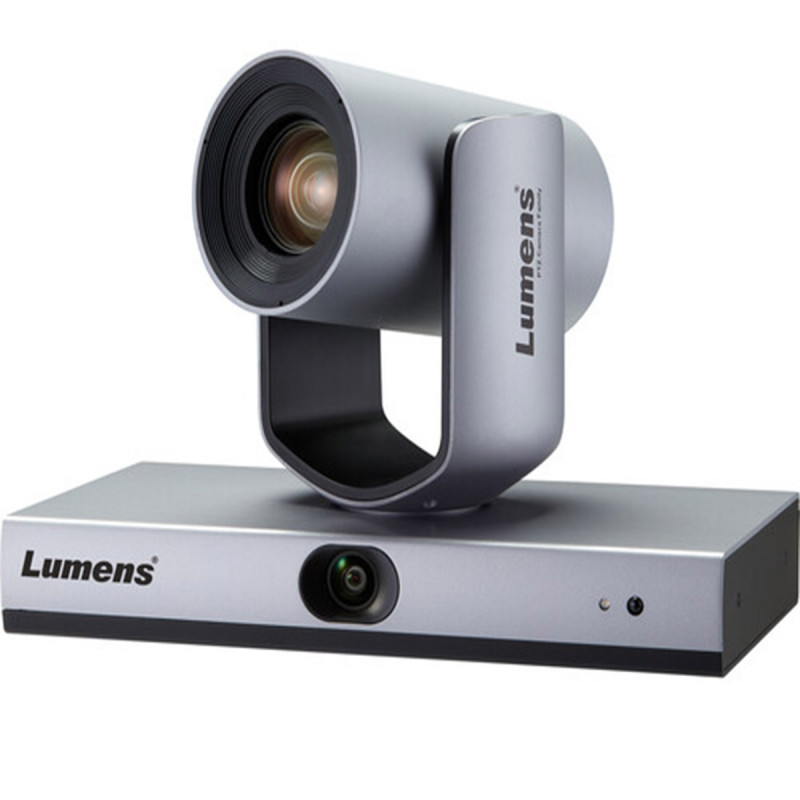

Lumens VC-TR1 - Caméra Tracking Full HD 60fps
Photo(s) non contractuelle(s)
zoom_out_map
chevron_left chevron_right

Lumens VC-TR1 - Caméra Tracking Full HD 60fps

5 Yeas Warranty

Product highlights
  • Dual-Lens PTZ / Panoramic Camera
  • HDMI, SDI, USB & IP Streaming Output
  • 20x Optical Zoom, 12x Digital Zoom
  • Capture up to 1080p60 Video
  • 180° Pan Range, 120° Tilt Range
  • Auto-Tracking, Auto-Switching, PoE+


€3,598.80 (tax incl.) €2,999.00 (tax excl.)
Tax included
ou réglez en :
Paiement en deux fois Paiement en trois fois Paiement en quatre fois avec Paiement fraction avec Alma

Sélectionnez Paiement fraction avec Alma au moment du paiement

en Paiement en deux fois en Paiement en trois fois en Paiement en quatre fois
Aujourd'hui*  €  €  €
Dans 1 mois  €  €  €
Dans 2 mois  €  €
Dans 3 mois  €
Total TTC  €  €  €
refresh Sur Commande - Habituellement expédié entre 3 et 21 jours Le produit est en cours de réapprovisionnement et sera bientôt en stock.
Description

Lumens VC-TR1 - Caméra Tracking Full HD 60fps

In my box
  • Lumens VC-TR1 Auto-Tracking PTZ Camera with 20x Optical Zoom
  • Power Adapter
  • Power Cord
  • IR Remote Control
  • USB Type-A Cable

Lumens VC-TR1 - Caméra Tracking Full HD 60fps

Add a high-quality, multifunction PTZ camera with subject auto-tracking to your conference room, event space, education environment, or house of worship with the VC-TR1 Auto-Tracking PTZ Camera with 20x Optical Zoom from Lumens. The dual-sensor camera features a 20x optical zoom lens with a 58.7° viewing angle, and it also features a panoramic lens with a 100° viewing angle for wider rooms. The camera video outputs via 3G-SDI, HDMI, USB, or multiple simultaneous IP streams and supports up to 1080p60 resolution. You can embed audio into your streams using the 3.5mm stereo analog audio input.

The intelligent tracking with its dual cameras allow you to accurately track your subject, and it features super and partition tracking to create tracking zones. It can integrate with popular video conferencing platforms such as Zoom, WebEx, Teams, Skype, YouTube, or Facebook Live. It can be controlled via IP or via an optional RS-232 serial controller. It can be powered using the included power supply or via PoE+ on a supported network.

Advanced Tracking

VC-TR1 represents a major advance in facial detection and camera tracking technology. With Lumens' technology, the presenter does not need to wear a dongle, nor is there any need to run a separate PC-based application. VC-TR1 does all the tracking within the system itself. Tracking is smooth and natural and can be finely tuned to adjust for speed and sensitivity to suit your needs.

Intelligent Tracking

Incorporating dual cameras, VC-TR1 monitors the full width of the stage and the presenter simultaneously, so it's always one step ahead. The user can select settings such as super tracking or partition tracking to establish accurate tracking areas and exclusion zones. This ensures that the presenter is the center of attention at all times. The operator can also add presets to zoom in when the speaker is at the lectern, for example, or zoom out to film a panel discussion. It's very easy to set up and requires no user input once the session has started.

Smart Switching Images between Dual Lens Design

The VC-TR1 integrates PTZ camera and 112° FOV panoramic camera. Thanks to the dual lens design, it can capture the entire view and track a speaker simultaneously. While in the process of tracking, the VC-TR1 automatically switches the video frame. Audiences see not only a presenter but also the content on a whiteboard or presentation material.

Simple Integration

VC-TR1 can be used in multiple roles within your organization. With UVC-compliant USB, the camera connects directly with video conferencing software such as Zoom, WebEx, Teams, or Skype. Featuring IP streaming, VC-TR1 delivers live video directly to platforms such as YouTube or Facebook Live. Its HDMI and SDI connectivity enables fast integration with video switchers for native video quality production.

Broadcast Quality

VC-TR1 combines excellent auto-tracking with camera technology, which is developed to television standards. The sensor, lens, and video output options are all professional-grade, giving you the high-resolution output, faithful colors, and excellent performance in low-light settings.

Conference Production

Suitable for use in the main auditoria or breakout rooms, offering automated event production of keynote addresses and discussion panels.

Telemedicine

Being able to move around a lab, a demonstrator can present to remote audiences without being restricted to a static VC position.

E-Learning

Teachers can engage more effectively with remote students by moving naturally around a classroom or lecture hall.

Technical sheet
  • Image Sensor : 1-Chip 1/2.8" CMOS Sensor
  • Sensor Resolution : Effective: 2.13 Megapixel (1920 x 1080)
  • Signal-to-Noise Ratio : 40 dB
  • Minimum Illumination : 1 Lux
  • Shutter Speed : 1/60 to 1/10,000 sec
  • Max Digital Zoom : 12x
  • Built-In ND Filter : No
  • Flip / Mirror Support : Image Flip
  • Optical Zoom Ratio : 20x
  • Focal Length : 4.9 to 94mm
  • Field of View : Horizontal: 58.7°
  • Field of View : Vertical: 45°
  • Field of View : Diagonal: 71°
  • Field of View : Horizontal: 100°
  • Field of View : Vertical: 80°
  • Field of View : Diagonal: 112°
  • Maximum Aperture : f/1.6 to 3.5
  • Focus Control : Autofocus Manual Focus
  • Output Formats : HDMI, RJ45, USB: 1920 x 1080p at 25, 30, 50, 60 fps
  • Output Formats : 1280 x 720p at 25, 30, 50, 60 fps
  • Embedded Audio : HDMI/SDI/USB Type-C: 2-Channel
  • IP Streaming : RTMP, RTSP: 1080p, 720p at 25p, 29.97p, 30p, 50p, 59.94p, 60p
  • IP Multi-Stream Support : Yes
  • Audio Recording : No
  • Presets : 256 via IP, RS-232, VISCA
  • Move Speed : Pan: 100°/sec
  • Move Speed : Tilt: 80°/sec
  • Movement Range : Pan: 180° (-90 to 90°)
  • Movement Range : Tilt: 120° (-30 to 90°)
  • Supported Control Protocols : IP
  • Supported Control Protocols : Pelco-D
  • Supported Control Protocols : Pelco-P
  • Supported Control Protocols : RS-232
  • Supported Control Protocols : RS-485
  • Supported Control Protocols : VISCA
  • Video Output Connectors : 1 x HDMI Type A Female
  • Video Output Connectors : 1 x BNC (3G-SDI) Female
  • Video Output Connectors : 1 x USB 2.0 Type-A (USB Video) Female
  • Video Output Connectors : 1 x RJ45 Female
  • Audio I/O : 1 x 1/8" Stereo Line Level Input
  • Control Interface : 1 x 8-Pin Mini-DIN (Pelco-D, Pelco-P, RS-232, VISCA) Input
  • Other I/O : 1 x RJ45 (LAN) Input/Output
  • PoE Support : PoE+ 802.3at
  • Power Connectors : 1 x Barrel / Coaxial (12 VDC)
  • Power Consumption : Device: 12 VDC 16 W
  • Power Consumption : PoE: 17 W
  • Dimensions : 9.6 x 6.5 x 5.7"
  • Weight : 3.1 lb

Data sheet
VC-TR1
4711246502697
