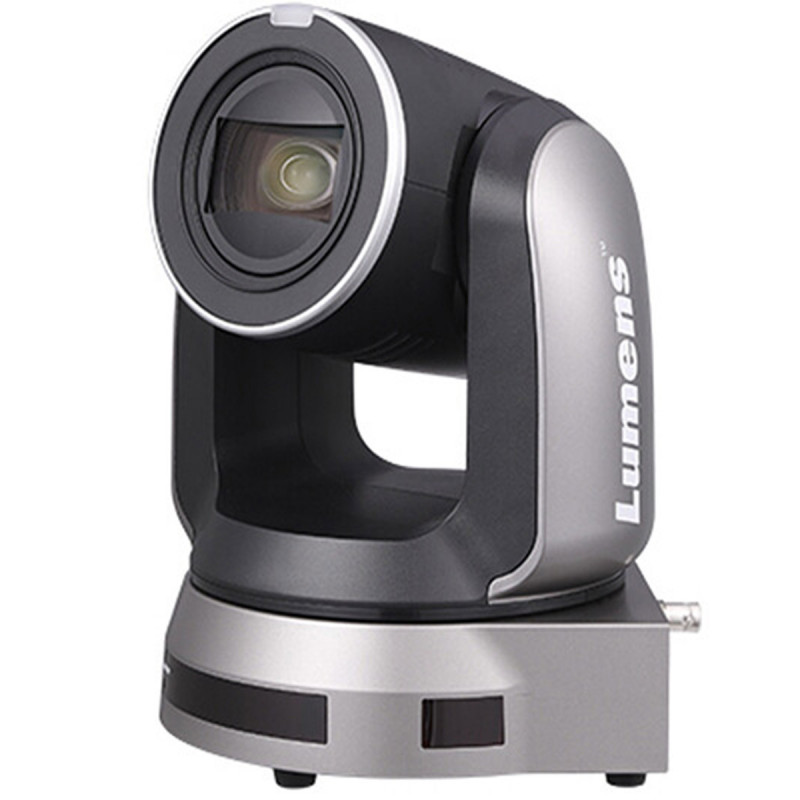

Lumens VC-A71P Noir - Caméra PTZ IP 4K

5 Years Warranty

Product highlights
  • Capture up to UHD 4K60, 30x Optical Zoom
  • 1/1.8" Sony CMOS Sensor
  • 12G-SDI, HDMI, RJ45 & USB 3.0 Outputs
  • Smart AF, FreeD VR/AR Protocol Support
Déclinaisons

Lumens VC-A71P Noir - Caméra PTZ IP 4K

GARANTIE
 5
ANS
VC-A71PB

Lumens VC-A71P Blanc - Caméra PTZ IP 4K

GARANTIE
 5
ANS
VC-A71PW


€4,798.80 (tax incl.) €3,999.00 (tax excl.)
Tax included
refresh Sur Commande - Habituellement expédié entre 3 et 21 jours Le produit est en cours de réapprovisionnement et sera bientôt en stock.
Description

Lumens VC-A71P Noir - Caméra PTZ IP 4K

In my box
  • Lumens VC-A71P 4K60 IP PTZ Camera with 30x Optical Zoom (Black)
  • IR Remote
  • Power Adapter
  • Power Cable
  • RS-422 Connector
  • Mounting Kit

Lumens VC-A71P Noir - Caméra PTZ IP 4K

The black VC-A71P 4K60 IP PTZ Camera with 30x Optical Zoom from Lumens is equipped with a professional 1/1.8" image sensor that delivers a superiorly clear and vivid live image. The 30x optical zoom lens, excellent white balance, and exposure mode deliver fine details, even in low light or the extreme contrast of brightness and darkness of a conference room. The camera covers wide shooting angles and achieves high-speed, quiet, and precise positioning with smooth PTZ operations. It supports live broadcasting with H.264, HEVC (H.265), and MJPEG format with low latency. The VC-A71P is a practical solution for lecture recording, videoconferencing, and live broadcasting applications.

Technical sheet
  • Image Sensor : 1-Chip 1/1.8" CMOS Sensor
  • Sensor Resolution : Effective: 9.17 Megapixel (3840 x 2160)
  • Signal-to-Noise Ratio : 50 dB
  • Minimum Illumination : 0.5 Lux
  • White Balance : 2800 to 7000K
  • Shutter Speed : 1/1 to 1/10,000 sec
  • Max Digital Zoom : 12x
  • Built-In ND Filter : No
  • Flip / Mirror Support : Image Flip, Mirror (Vertical)
  • Optical Zoom Ratio : 30x
  • Focal Length : 6.5 to 202mm
  • Field of View : Horizontal: 3.7 to 63°
  • Field of View : Vertical: 2.1 to 35.4°
  • Field of View : Diagonal: 4.2 to 72.3°
  • Maximum Aperture : f/1.6 to 4.8
  • Minimum Focus Distance : Wide: 59.1"
  • Minimum Focus Distance : Telephoto: 59.1"
  • Focus Control : Autofocus
  • Output Formats : SDI, HDMI, RJ45, USB: 3840 x 2160p at 25, 29.97, 50, 59.94 fps
  • Output Formats : 1920 x 1080p at 25, 29.97, 50, 59.94 fps
  • Output Formats : 1920 x 1080i at 50, 59.94 fps
  • Output Formats : 1280 x 720p at 25, 29.97, 50, 59.94 fps
  • IP Streaming : H.264, H.265, MJPEG: UHD 4K, 1080p, 360p at 29.97p, 59.94p
  • IP Multi-Stream Support : Yes
  • Presets : 10 via IR
  • Presets : 255 via IP
  • Movement Range : Pan: 340° (-170 to 170°)
  • Movement Range : Tilt: 120° (-30 to 90°)
  • Tally Light : Yes
  • Supported Control Protocols : IP
  • Supported Control Protocols : IR
  • Supported Control Protocols : Pelco-D
  • Supported Control Protocols : Pelco-P
  • Supported Control Protocols : RS-232
  • Supported Control Protocols : RS-485
  • Supported Control Protocols : VISCA
  • Video Output Connectors : 1 x BNC (12G-SDI) Female
  • Video Output Connectors : 1 x HDMI Type A (HDMI 2.0) Female
  • Video Output Connectors : 1 x RJ45 Female
  • Video Output Connectors : 1 x USB 2.0 Type-B (Composite) Female
  • Audio I/O : 1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input
  • Control Interface : 1 x 8-Pin Mini-DIN (RS-232) Input
  • Control Interface : 1 x 8-Pin Mini-DIN (RS-232) Output
  • Control Interface : 1 x 9-Pin Terminal Block (RS-422)
  • PoE Support : PoE++ 802.3bt
  • Power Connectors : 1 x JEITA (12 VDC)
  • Power Consumption : Device: 23
  • Power Consumption : PoE: 23.5
  • Security Lock Support : Kensington Lock Slot
  • Dimensions : 9.1 x 7.4 x 7.4"
  • Weight : 6.6 lb

Data sheet
VC-A71PB
4711246502475
