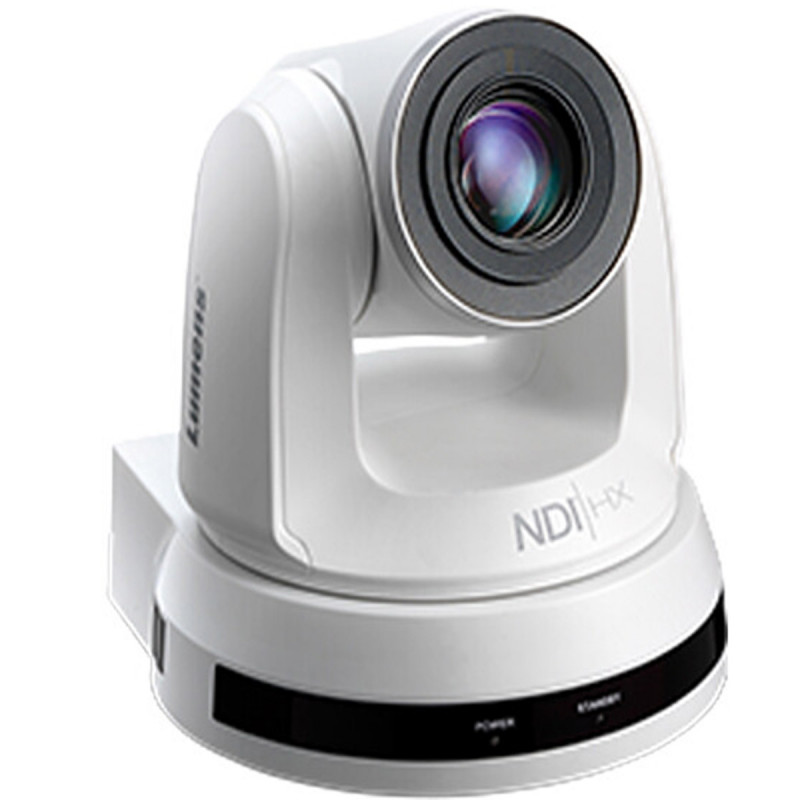

Lumens VC-A51PN Blanc - Caméras PTZ Full HD IP/NDI/HX 60fps
Photo(s) non contractuelle(s)
zoom_out_map
chevron_left chevron_right

Lumens VC-A51PN Blanc - Caméras PTZ Full HD IP/NDI/HX 60fps

5 years warranty

Product highlights
  • Simultaneous 3G-SDI, HDMI, NDI Output
  • 1/2.8" CMOS Sensor
  • 1080p60 Resolution
  • 20x Optical Zoom
  • IP/RS-232/422 Serial Control
  • PoE+ Support
Déclinaisons

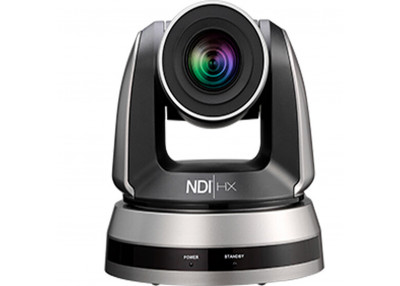

Lumens VC-A51PN Noir - Caméras PTZ Full HD IP/NDI/HX 60fps

GARANTIE
 5
ANS
VC-A51PNB

Lumens VC-A51PN Blanc - Caméras PTZ Full HD IP/NDI/HX 60fps

GARANTIE
 5
ANS
VC-A51PNW


€2,758.80 (tax incl.) €2,299.00 (tax excl.)
Tax included
ou réglez en :
Paiement en deux fois Paiement en trois fois Paiement en quatre fois avec Paiement fraction avec Alma

Sélectionnez Paiement fraction avec Alma au moment du paiement

en Paiement en deux fois en Paiement en trois fois en Paiement en quatre fois
Aujourd'hui*  €  €  €
Dans 1 mois  €  €  €
Dans 2 mois  €  €
Dans 3 mois  €
Total TTC  €  €  €
refresh Sur Commande - Habituellement expédié entre 3 et 21 jours Le produit est en cours de réapprovisionnement et sera bientôt en stock.
Description

Lumens VC-A51PN Blanc - Caméras PTZ Full HD IP/NDI/HX 60fps

In my box
  • Lumens VC-A51PN 1080p60 PTZ Camera with NDI HX and 20x Optical Zoom (White)
  • Remote Control

Lumens VC-A51PN Blanc - Caméras PTZ Full HD IP/NDI/HX 60fps

Integrate the white Lumens VC-A51PN 1080p60 PTZ Camera with NDI|HX and 20x optical zoom into your AV broadcast or IP live production setup for distribution and control over Ethernet network connection. Efficiently capture your next conference or live performance with simultaneous 3G-SDI, HDMI, and NDI video outputs. A 1/2.8" CMOS sensor adds a wide dynamic range, 3D noise reduction, advanced autofocus, and auto white balance to your broadcast. Stream 1080p60 video with low latency to platforms like YouTube, Twitch, or Facebook without the need for additional hardware or software.

Control over the 20x optical zoom and pan and tilt movements can be achieved via NDI tools or hardware controllers thanks to the camera's RS-232, RS-422, and IP serial control compatibility. The device can be powered through Ethernet connection via PoE+ or via the DC input for flexible installation in your preexisting workflow.

Camera Control

  • RS-232 and RS-422 support allows for connection to a wide range of products
  • NDI, VISCA, VISCAIP, PELCO-D, and ONVIF protocols
  • Supports IR remote control
Technical sheet
  • Image Sensor : 1-Chip 1/2.8" CMOS Sensor
  • Sensor Resolution : Effective: 2.16 Megapixel
  • Signal-to-Noise Ratio : 50 dB
  • Minimum Illumination : 1 Lux
  • Shutter Speed : 1/1 to 1/10,000 sec
  • Precise Scan Rate Control : No
  • Built-In ND Filter : No
  • Flip / Mirror Support : Image Flip
  • Optical Zoom Ratio : 20x
  • Focal Length : 5.3 to 110mm
  • Field of View : Horizontal: 57°
  • Field of View : Vertical: 32.1°
  • Field of View : Diagonal: 65.4°
  • Maximum Aperture : f/1.6 to 3.8
  • Minimum Focus Distance : Wide: 59.1"
  • Minimum Focus Distance : Telephoto: 59.1"
  • Focus Control : Autofocus
  • Focus Control : Manual Focus
  • Output Formats : SDI, HDMI: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps
  • Output Formats : 1920 x 1080i at 50, 59.94, 60 fps
  • Output Formats : 1280 x 720p at 50, 59.94, 60 fps
  • Embedded Audio : HDMI/NDI/SDI
  • IP Streaming : H.264, MJPEG, RTMP, RTSP: 1080p at 60p
  • IP Multi-Stream Support : Simultaneous
  • IP Multi-Stream Support : H.264: 1080p at 60p
  • IP Multi-Stream Support : MJPEG: 1080p at 30p
  • IP Multi-Stream Support : RTMP, RTP, RTSP: 1080p at 60p
  • Audio Recording : No
  • Presets : 128
  • Move Speed : Pan: 300°/sec
  • Move Speed : Tilt: 300°/sec
  • Movement Range : Pan: 340° (-170 to 170°)
  • Movement Range : Tilt: 120° (-30 to 90°)
  • Tally Light : Yes
  • Supported Control Protocols : IP
  • Supported Control Protocols : NDI
  • Supported Control Protocols : Pelco-D
  • Supported Control Protocols : VISCA
  • Video Output Connectors : 1 x BNC (3G-SDI) Female
  • Video Output Connectors : 1 x HDMI Type A (HDMI 1.0) Female
  • Audio I/O : 1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input
  • Control Interface : 1 x 8-Pin Mini-DIN (RS-232) Input
  • Control Interface : 1 x 8-Pin Mini-DIN (RS-232) Output
  • Control Interface : 1 x 9-Pin Terminal Block (RS-422)
  • Control Interface : 1 x RJ45 (IP Control) Input
  • Control Interface : 1 x RJ45 (IP Control) Input
  • Other I/O : 1 x USB Type-C Input
  • PoE Support : PoE+ 802.3at
  • Power Connectors : 1 x Barrel / Coaxial (12 VDC)
  • Power Consumption : Power Supply: 17 W
  • Power Consumption : PoE: 18.5 W
  • Security Lock Support : Kensington Lock Slot
  • Dimensions : 7.3 x 7.3 x 6.9"
  • Weight : 4.4 lb

Data sheet
VC-A51PNW
4711246503038
