Blackmagic ATEM 4 M/E Constellation HD

2 years warranty

Product highlights

Internal Media for Still Images and Motion Graphics
Includes New ATEM Advanced Chroma Keyers!
Create amazing virtual sets
Broadcast Talkback Professional

€4,182.00 (tax incl.) €3,485.00 (tax excl.) Économisez - €443.00 (tax incl.)

€3,739.00 (tax incl.) €3,115.83 (tax excl.)

Tax included

ou réglez en :

avec $Paiement fraction avec Alma$

Sélectionnez $Paiement fraction avec Alma$ au moment du paiement

Total TTC	€	€	€
	en	en	en
Aujourd'hui*	€	€	€
Dans 1 mois	€	€	€
Dans 2 mois		€	€
Dans 3 mois			€

Subscribe To When In Stock

You have successfully subscribed to this product

Description

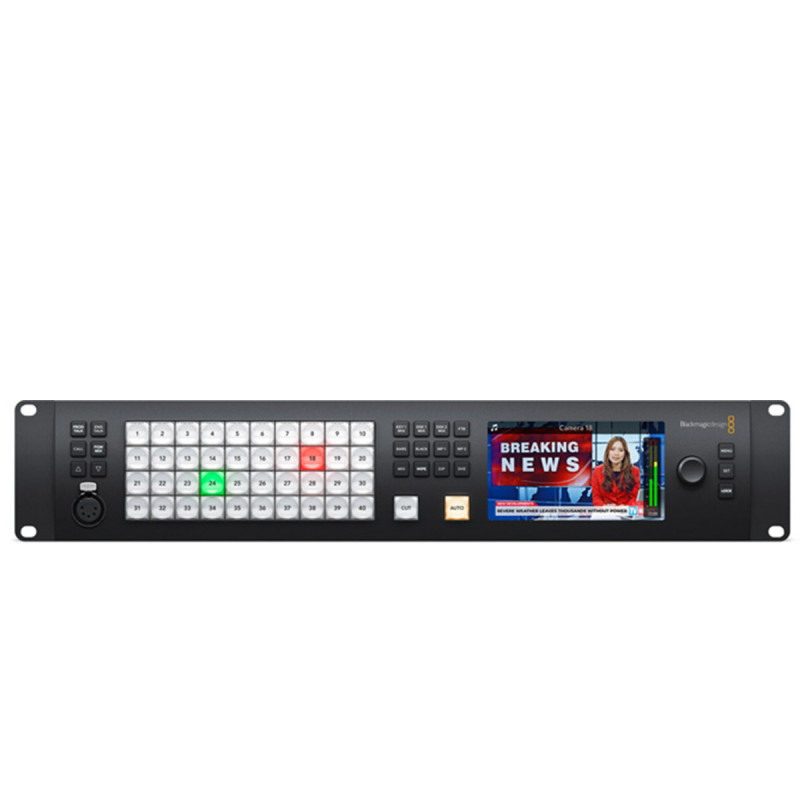

Blackmagic ATEM 4 M/E Constellation HD

In my box

ATEM 4 M/E Constellation HD
Welcome wallet with QR code for software download

Blackmagic ATEM 4 M/E Constellation HD

ATEM Constellation HD switchers feature a compact rack mount design with a built in control panel. This allows operation of the switcher, critical during setup or for emergency use. Also included is a large LCD so you can see program output and change switcher settings via on screen menus. The compact design is perfect for portable live production, with the rear of the switcher including the connections for 3G-SDI inputs, 3G-SDI aux outputs, balanced audio and Ethernet for control. The top 4 M/E model even includes RS-422 for serial control and MADI digital audio connections. Even with all this power, ATEM Constellation is extremely quiet with its innovative high efficiency thermal system.

ATEM 4 M/E Constellation HD

The massive 4 M/E model doubles the features of the 2 M/E model with 40 x 3G-SDI inputs, 24 x 3G-SDI outputs, 4 DVEs, 16 ATEM Advanced Keyers, 4 multiviews and 2 SuperSource for 12 x DVEs in total.

Technical sheet

Total Video Inputs

Total Video Outputs

SDI Rates

1.5G, 3G

Total Audio Inputs

2 x balanced 1/4 inch Jack,

1 x 32 stereo channel BNC MADI in.

1 x 5 pin XLR Talkback.

Total Audio Outputs

2 x balanced 1/4 inch Jack,

2 x 32 stereo channel BNC MADI out.

1 x 5 pin XLR Talkback.

SDI Audio Inputs

2 Ch embedded audio on all SDI inputs.

SDI Audio Outputs

2 Ch embedded audio on all SDI outputs.

Timecode Connections

None

Reference Input

Tri-Sync or Black Burst.

Video Input Re-Sync

On all 40 inputs.

Frame Rate and Format Converters

On all 40 inputs.

SDI Aux Outputs

Any of the 24 SDI outputs.

SDI Preview Outputs

Any of the 24 SDI outputs.

SDI Program Outputs

Any of the 24 SDI outputs.

Down Converted SDI Program Output

None

Webcam Output

1 x USB-C supporting 720p or 1080p at PGM frame rate.

Total Multi Views

4 x 3G-SDI

Remote

RJ12 supports RS-422

Control Panel Connection

Ethernet. Direct connection between panel and chassis, or via network.

Internal Timecode Generator

Yes

Talkback

RJ45 for 3rd party talkback systems.

Tally Output

Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).

Ethernet

Supports 10/100/1000 BASE-T.

Computer Interface

1 x USB-C supports USB 3.1 Gen 1 (5Gb/s)
