Rami Expander GPIO 16 / Ember+ / 2 alim / 1 FRT200 / 2 PCS241

Rami Expander GPIO 16 / Ember+ / 2 power supply / 1 FRT200 / 2 PCS241

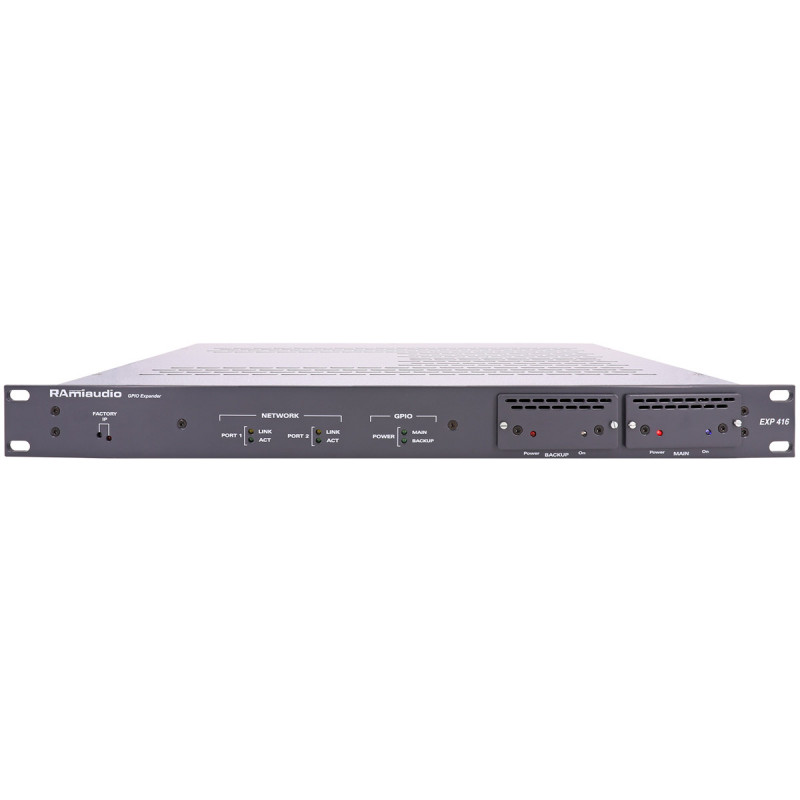

EXP416 allows the control and monitoring of different digital or analog devices via Ember+ or SNMP protocol to be combined in one device.

• Simple and direct interfacing of all existing equipment with parallel contacts.
• 16 digital inputs on Opto.
• 16 digital outputs on Opto Mos.
• 2 Ethernet 10/100 Base-T ports.
• 1 USB Device 2.0 port.
• Individual configuration via the integrated web server of the Loop or GPI voltage mode.
• Individual configuration via the integrated web server of the Loop or GPO voltage mode.
• Individual configuration of the GPO voltage 24V/12V/5V via the web server.
• Real-time visualisation via the embedded web server of the status of each input/output.
• Tripler power supply with automatic switching.
• Tripler GPIO polarisation power supply with automatic switching.
• Backup and recovery of the device configuration file.

FRT200 Rack 19" 1U front panel adapter for 2 “SLIMRACK” units.

PCS241 is a 24V mono power supply allowing to deliver 1A.

• 24V / 1A power supply.
• Warning for overload and current limitation.
• 3 outputs on rear panel.
• Floating 24V supply. Earth is available on output connectors for connection to 0V or 24V.

PCS241 is a “SLIMRACK” product. The FRT 200 adapter allows one or two SLIMRACK products to be fitted in a 19”, 1 unit rack.
