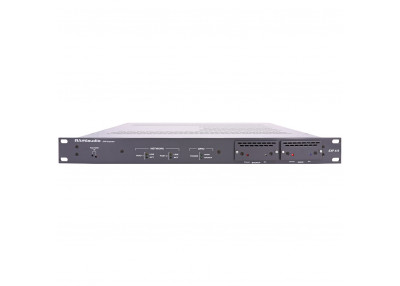

Rami Expander GPIO 16 / Ember+ /1 alim /1 FRT200 /1 FRT300 /1 PCS241

3 years warranty

Product highlights

Simple and direct interfacing of all existing equipment with parallel contacts.
Individual configuration via the integrated web server of the Loop or voltage mode of the GPIs.
Individual configuration via the integrated web server of the Loop or voltage mode of the GPOs.
Individual configuration via the web server of the voltage of the GPOs 24V/12V/5V.
Real-time visualization via the embedded web server of the status of each input/output.
Dual mains supply with automatic switching

Déclinaisons

€3,624.00 (tax incl.) €3,020.00 (tax excl.)

Tax included

ou réglez en :

avec $Paiement fraction avec Alma$

Sélectionnez $Paiement fraction avec Alma$ au moment du paiement

Total TTC	€	€	€
	en	en	en
Aujourd'hui*	€	€	€
Dans 1 mois	€	€	€
Dans 2 mois		€	€
Dans 3 mois			€

Subscribe To When In Stock

You have successfully subscribed to this product

Description

In my box

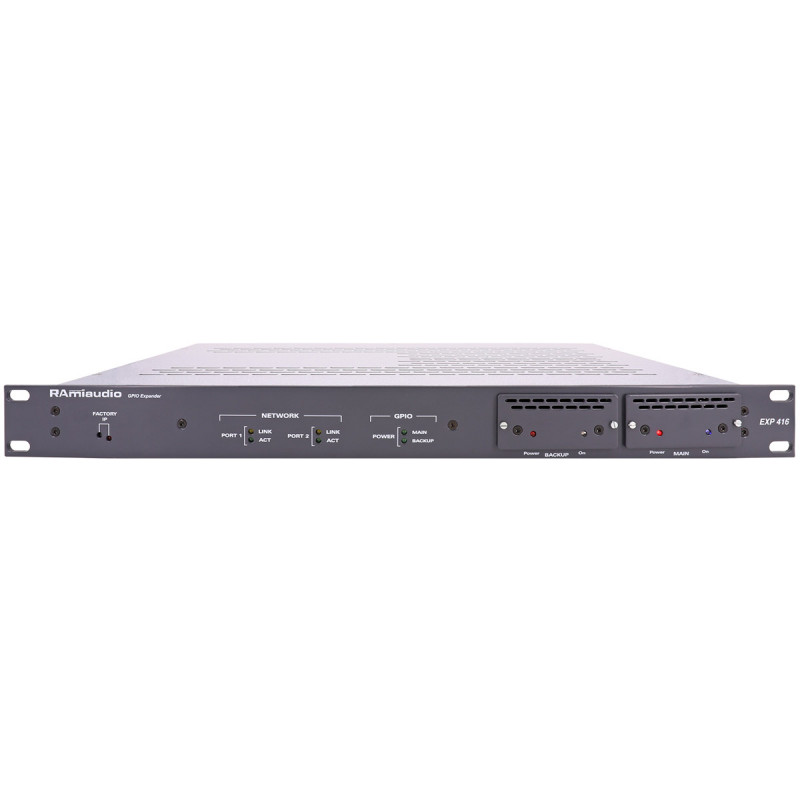

EXP416 allows the control and monitoring of different digital or analog devices via Ember+ or SNMP protocol to be combined in one device.

Simple and direct interfacing of all existing equipment with parallel contacts.
16 digital inputs on Opto.
16 digital outputs on Opto Mos.
2 Ethernet 10/100 Base-T ports.
1 USB Device 2.0 port.
Individual configuration via the integrated web server of the Loop or GPI voltage mode.
Individual configuration via the integrated web server of the Loop or GPO voltage mode.
Individual configuration of the GPO voltage 24V/12V/5V via the web server.
Real-time visualisation via the embedded web server of the status of each input/output.
Dual power supply with automatic switching.
Dual GPIO polarisation power supply with automatic switching.
Backup and recovery of the device configuration file.

FRT200 Rack 19" 1U front panel adapter for 2 “SLIMRACK” units.

FRT300 is a cover plate for FRT200.

PCS241 is a 24V mono power supply allowing to deliver 1A.

24V / 1A power supply.
Warning for overload and current limitation.
3 outputs on rear panel.
Floating 24V supply. Earth is available on output connectors for connection to 0V or 24V.

PCS241 is a “SLIMRACK” product. The FRT 200 adapter allows one or two SLIMRACK products to be fitted in a 19”, 1 unit rack.

Technical sheet

EXP416
