Rami Centre de modulation broadcast 4 - 1 - commut. boucles - télec.

Rummy Broadcast modulation center 4 - 1 - commut. loops - telec.

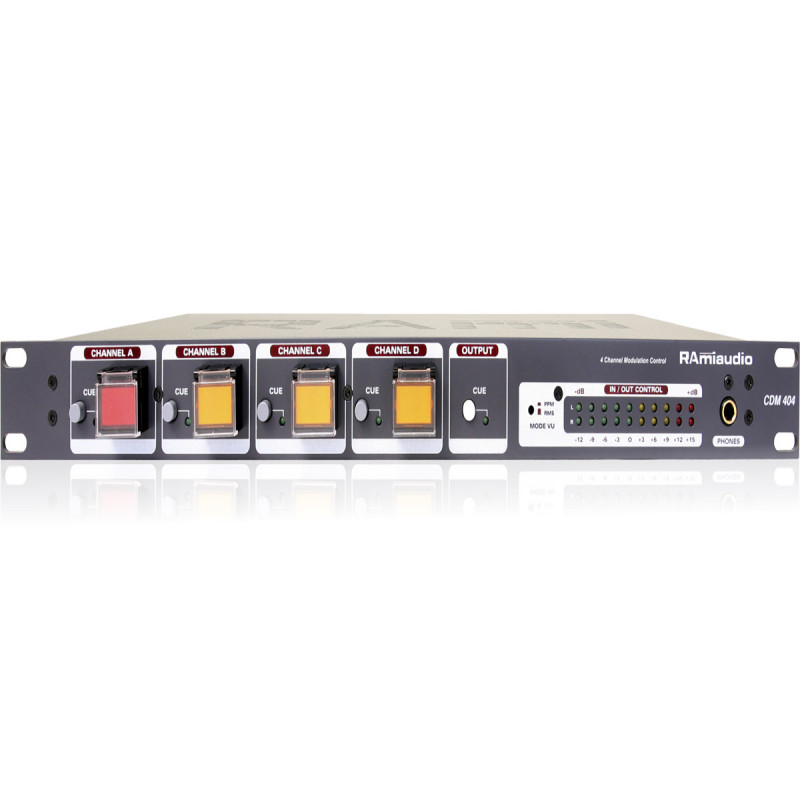

CDM404 allows to select one stereo balanced modulation out of four.

Commutation is made by relays, which keep signal quality at its best, avoiding calibration, while allowing the commutation of very high amplitude signals.

Selection is made via luminous push buttons on the front panel.

n case of power failure or switch on process, Channel A is commuted.

CDM404 is equipped with a stereo cue and monitoring section where the three input signals and the output can be mixed. This section includes a monitor output (line level), an headphone output and a bargraph which can be configured as a peakmeter or display RMS reading.

Two dry loops are available for each commuted channel, allowing a subsequent routing of external remote controls. Possibility of expansion with the using of the FDI800. For instance:

• General "commercials" remote routed to "On Air" studio.
• Automatic management of the order indicators and the phones monitor to a studio "speak" used by several control rooms.

The unit can be remotely controlled by switching on momentary or held button with the possibility to remote the indicators. A remote control interface with display is available (CDM404T).
