Rami Autofader AES/EBU 3 voies stéréo

Rami Autofader AES/EBU 3-channel stereo

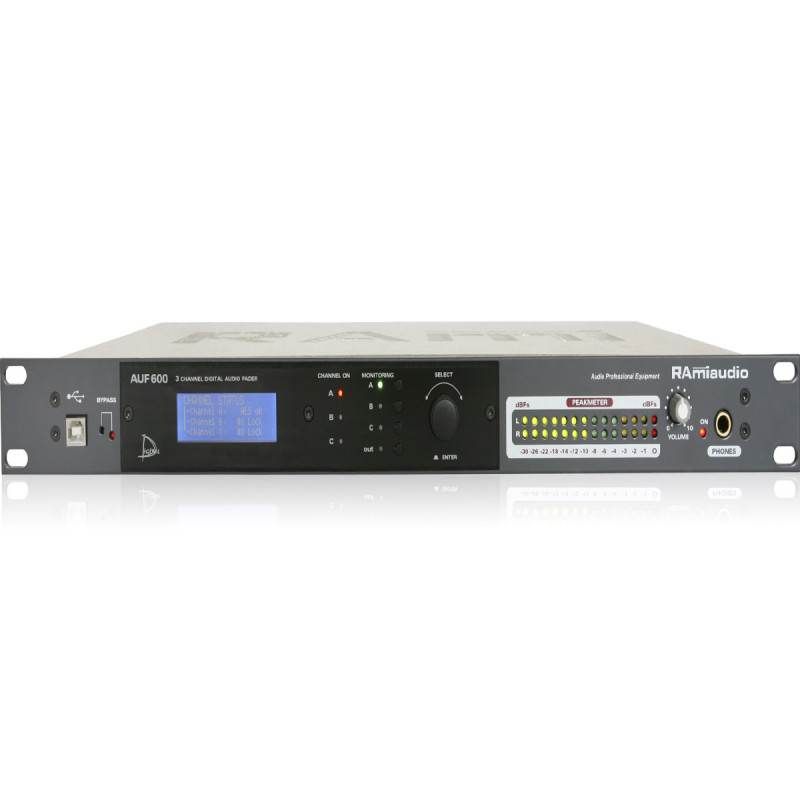

AUF600 is an audio mixer able to manage three AES/EBU digital audio with fade.

All inputs provide SRC, and synchro is achieved by A input or AES/EBU input, allowing to mix digital audio with different sampling frequencies.

Input A is default output, B and C inputs are enabled either on audio input or GPI or both at the same time, providing the AUF200S, AUF300, AUF550 well known modes, manual, automatic, manual or automatic, manual and automatic.

According to the used GPI input Input A will be lightly or totally faded.

Mirror state of inputs are available as GPO for external purposes.

Using appropriate programming, an analog input can substitute itself to digital channel B or C.

One output B+C and one input B+C allows sound processor insert on those channels. For instance you can have A processed from the net, and tu use only one sound processor on B and C.

LCD display and incremental coder, allows input/output parameters full control.

Monitor is available on all inputs and output, and use headphone, line output, and peakmeter display.

Embedded web browser, IP connection remotely eases settings, control, infos sending, under SNMP protocol.
