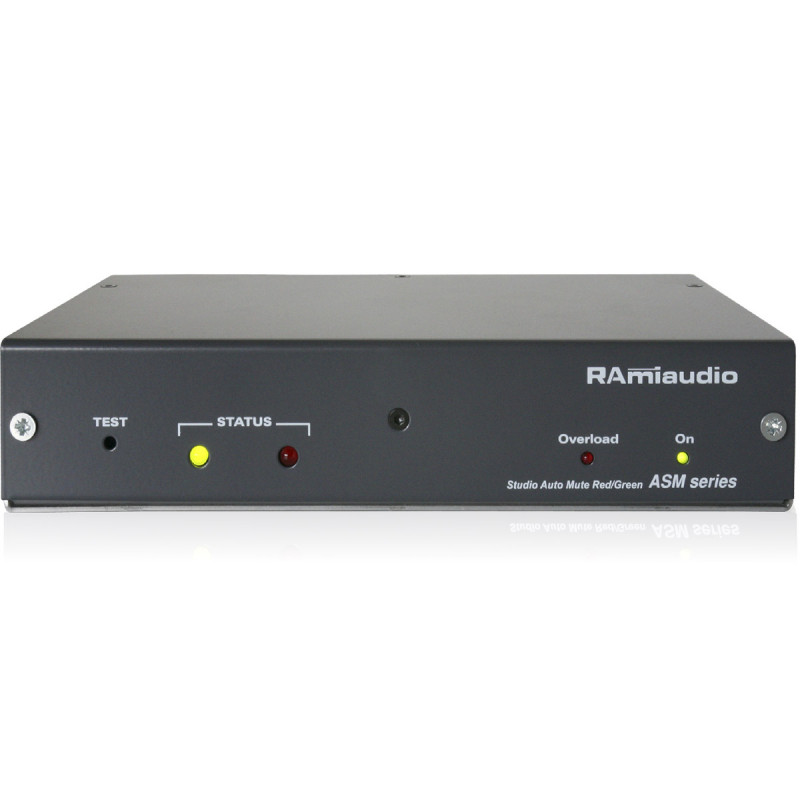

The ASM120D combines the functions of "Red/Green" antenna switch and automatic Studio Mute interface. It allows direct control of the RGL260 (Red/Green) or RGL500 ("ON AIR") signs to indicate the ON/OFF ANTENNA function.

The ASM120D automatically disconnects studio monitors; the control being effected by a loop or a voltage.

Two types of "LED" visualization can be interfaced with the ASM120D:

• The RGL260, RED / GREEN visualization, by 20 mm diameter LEDs.
• The RGL500, RED "ON AIR" display with LEDs.

The RGL260 and the RGL500 operate at 24V, control voltages provided by the ASM120D.
