Godox TX1 - UHF Wireless Emetteur

2 Years Warranty

Product highlights

For WMicS1 Wireless Systems
Omnidirectional Lavalier Microphone
10/40mW Switchable Transmission Power
AA Batteries + USB Power

€100.00 (tax incl.) €83.33 (tax excl.)

Tax included

Subscribe To When In Stock

You have successfully subscribed to this product

Description

Godox TX1 - UHF Wireless Emetteur

In my box

Godox TX1 Wireless Bodypack Transmitter with Omni Lavalier Microphone (514 to 596 MHz)
Bodypack Transmitter
Omnidirectional Lavalier Microphone
Belt Clip

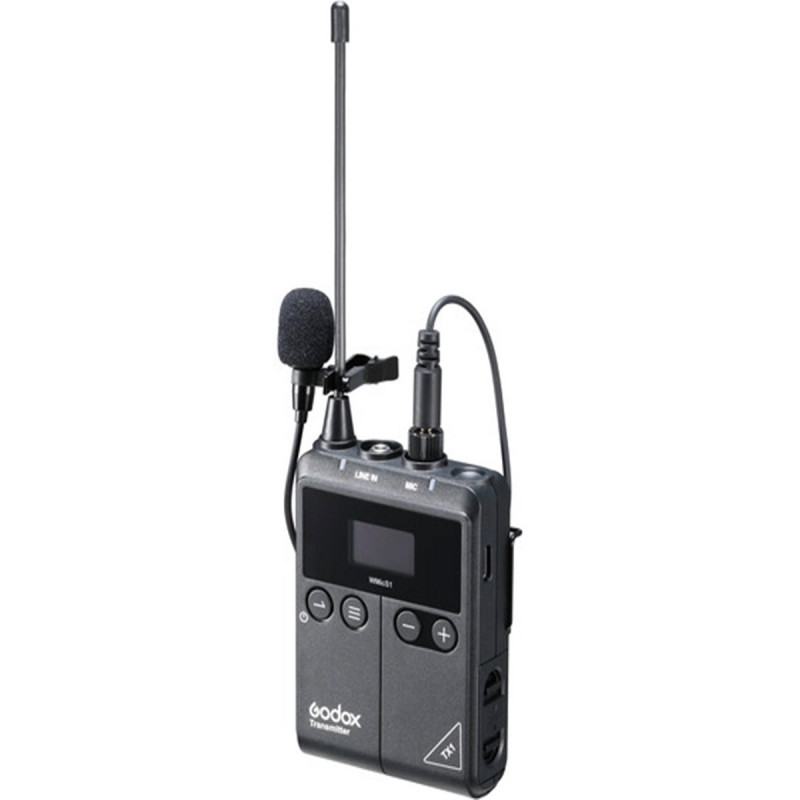

Godox TX1 Transmitter

The Godox TX1 is a bodypack wireless transmitter compatible with the WMicS1 wireless receiver. Featuring a lightweight design, it is comfortable for performers and presenters to wear, while providing reliable transmission at a range up to 328' line-of-sight.

The TX1 comes with an omnidirectional lavalier microphone. The microphone offers a 360° sound pickup pattern, which is forgiving to your subject's head movements.

The transmitter features a locking 3.5mm mic input designed to prevent accidental disconnection. It is equipped with an On/Off switch that doubles as a mute button. An easy-to-read OLED display indicates the mic's input level, muting, and battery life.

The TX1 offers two levels of RF transmission power: 40mW to improve signal quality when working at greater distances or 10mW for maximum battery life when working at close range. The unit operates on two AA batteries but can also be powered via USB.

Technical sheet

Wireless Technology : Analog UHF
RF Frequency Band : 514 to 596 MHz
RF Channel Scanning : Manual
Max Operating Range : 328.1' (Line of Sight)
Latency : 12 ms
Encryption : None
Transmitter Type : Bodypack
RF Output Power : 10 / 40 mW
Audio I/O : 1 x 1/8" TRS Female Unbalanced Input (Lockable)
Muting : Off/On Switch
Auto-Level Control : No
Sync Method : Manual
Antenna : 1 x 1/4 Wave External, Fixed
Power Requirements : Battery
Battery Type : 2 x AA (Not Included)
USB/Lightning Connectivity : 1 x USB Type-C (Bus Power)
Display & Indicators : 1 x OLED (Audio Level, Battery Status, Channel, Mute, RF Output Power)
Operating Temperature : 32 to 104°F
Dimensions : 2.5 x 7.5 x 0.9" (without Antennas)
Microphone Type : Lavalier
Color : Black
Sound Field : Mono
Capsule : Electret Condenser
Polar Pattern : Omnidirectional
SNR : 70 dB
THD : 0,05
Sensitivity : -35 dB
Output Connectors : 1 x 1/8" TRS Male Unbalanced (Lockable)
