Sennheiser Émetteur UHF stéréo demi-rack une unité E 823,2-831,8MHz

2 years warranty

Product highlights

Works with XSW IEM EK Stereo Receiver
Half-Rack 1 RU Design
Rugged Metal Housing, Detachable Antenna
960 Frequencies, 8 Banks
Backlit LCD Screen
IR Sync
Headphone Output with Volume
Up to 12 Transmitters / 330' Range

Déclinaisons

€349.00 (tax incl.) €290.83 (tax excl.)

Tax included

Subscribe To When In Stock

You have successfully subscribed to this product

Description

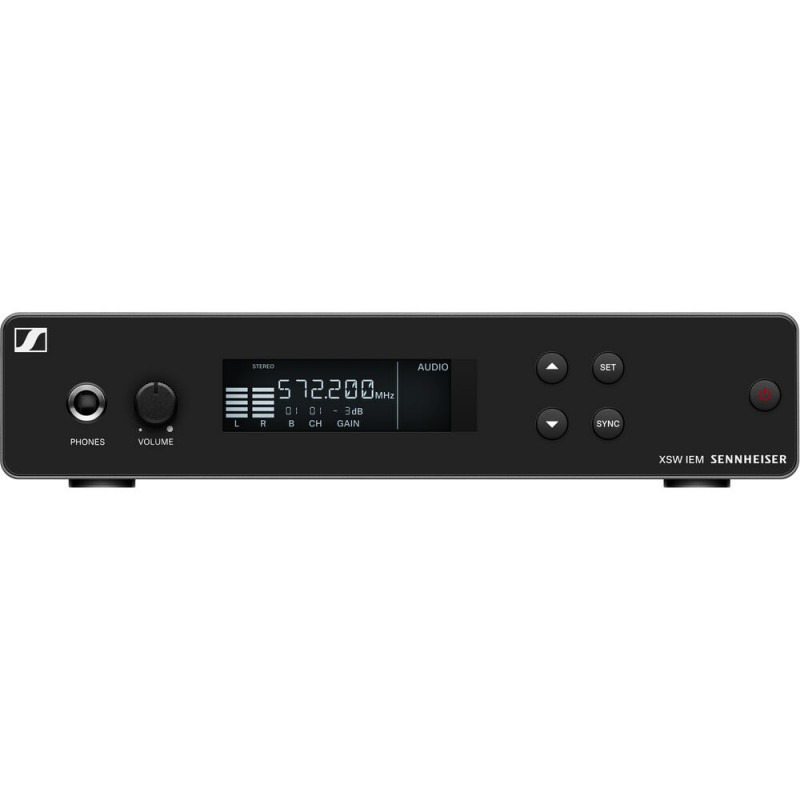

Sennheiser Émetteur UHF stéréo demi-rack une unité E 823,2-831,8MHz

In my box

Sennheiser XSW IEM SR Stereo In-Ear Monitoring Wireless Transmitter (E 823,2-831,8MHz)
XSW BNC Antenna
NT 12-5 CW Power Supply with AC Plug Adapters (US, UK, EU)

Sennheiser XSW IEM SR Stereo In-Ear Monitoring Wireless Transmitter E 823,2-831,8MHz

Also available as part of the XSW IEM SET in-ear personal wireless monitoring system, the Sennheiser XSW IEM SR is available here as an indivdual component—a compact stereo wireless transmitter used in conjunction with separately available XSW IEM EK stereo receivers. The transmitter features a half-rack 1 RU rugged metal housing designed for extended use in small clubs. With its detachable antenna, the unit is easy to transport and can be installed in a rack (XSW rackmount kit available separately) or used standalone on a tabletop to deliver the renowned Sennheiser sound and solid wireless reliability for musicians rehearsing or performing live on a club stage or in a house of worship.

Simple-to-Use Personal Wireless Monitoring

Two combo XLR-1/4" inputs enable you to send either a stereo or two different mono audio sources at the same time, from either 1/4" or XLR connections.

A backlit LCD screen on the front panel allows for easy set up, even on dark stages.

You can preview your in-ear mix locally using the headphone output with volume knob located on the front.

Setting up gain, mono, or stereo options, input sensitivity, or frequency channels takes just a matter of seconds thanks to the clear and simple menu.

Reliable Wireless Performance

The stereo transmitter is equipped with 960 frequencies and has 8 banks with 12 aligned and precalculated frequencies each, enabling you to automatically find a clean wireless channel at your location for a reliable transmission up to 330'.

The system transmits in the UHF frequency range, making it immune to cell-phone and Wi-Fi interference that can plague 2.4 GHz systems.

The infrared sensors allow you to quickly sync multiple receivers to one transmitter at the press of a button.

The transmitter can send signal to as many receivers as needed.

Up to 12 transmitters can operate simultaneously in the same frequency band.

Technical sheet

Frequency Band : E 823,2-831,8MHz
Wireless Technology : Analog, UHF
Modulation : FM Stereo
Transmitting Rf Power : 30 mW
Number Of Rf Channels : 960
Switching Bandwidth : 24 MHz
Frequency Step Size : 25 kHz
Frequency Banks : 8 Banks with 12 Aligned and Precalculated Frequencies Each
Frequency Scanning : Manual
Max Transmitters Per Band : 12
Max Operating Range : 330' / 100 m (Line of Sight)
Nominal/Peak Deviation : ±15 kHz / ±24 kHz
Antenna Output : BNC Socket, 50 Ohms
Frequency Response : 45 Hz to 15 kHz
Inputs : L (Mono) / Right: 2 x XLR-1/4" / 6.3 mm Jack Combo Socket, Electronically Balanced
Output : 1/4" / 6.3 mm TRS Headphones Out with Volume Knob
Sync Method : IR
Total Harmonic Distortion (Thd) : <0.9%
Signal-To-Noise Ratio : ≥88 dB at Nominal Load and Peak Deviation
Power Input Rating : +12 VDC
Current Consumption : Approximately 400 mA
Housing : Metal
Temperature Range : 32 to 104°F / 0 to 40°C
Dimensions : Approximately 7.9 x 5 x 1.7" / 20.0 x 12.8 x 4.2 cm
Weight : Approximately 24.7 oz / 700 g
