Sony 1 Panneau de commande compact M / E à 24 boutons pour XVS-G1
- 1 x Sony ICP-X1124 Control Panel

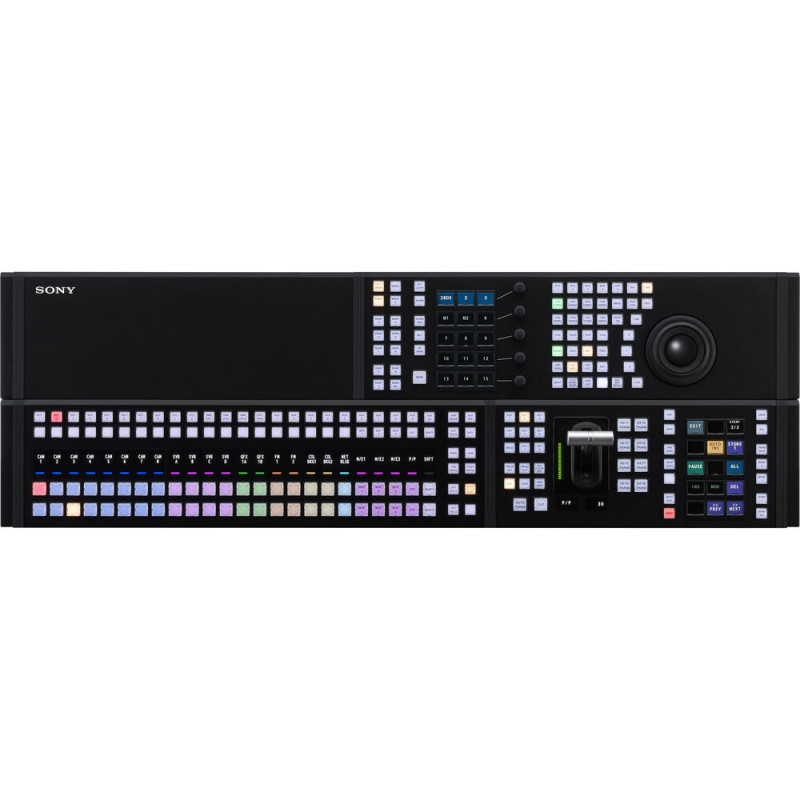

Sony ICP-X1124 Control Panel
A range of four new control panels offers 1 M/E or 2 M/E configurations with 16 or 24 source button layouts, for the XVS-G1. Derived from Sony’s renowned ICP-X7000 Series, they all ensure compact, easy and reliable operation. The panels inherit many familiar features of Sony’s XVS high-end switchers, including excellent on-air status display, unsurpassed button feel, and dependable speed in mission-critical live production.
The XVS-G1 system is a perfect fit for the small to mid-size studio, broadcast remote trucks, faith-based community, universities, corporations and fly away pack production units.
Remote operation for work efficiently and safely
The XVS-G1 system is capable of supporting network routing function to enable multiple LAN/WAN network connectivity. This allows the remote operation capabilities by connecting the processor and the panel over Layer 3 network. The control panel can be located at a remote site away from the processor to support remote production over the long distance.
Utility and ShotBox Block
Colour LCD buttons with assignable buttons
UTIL/SB mode: Utility/ShotBox recall
Menu mode: Menu parameter adjustment with rotary knobs
Device Control Block
Easy-to-use trackball for fine adjustment, plus direct access buttons
Resizer / DME adjustment (Size, Position, Rotation, etc)
DDR / VTR control (Play, Stop, Jog / Shuttle, etc)
Transition Block
Next Transition Block with assignable buttons enables extremely flexible operation
OLED displays for M/E name or Transition Rate
8 Key Transition buttons for 4 Keyers (AUTO+CUT) or 8 Keyers (AUTO)
Crosspoint Block
OLED Source Name display
Tri-Colour buttons with selectable colouring for easy grouping of sources
Assignable Delegation buttons (Key 1-8, AUX1-16, Utility / ShotBox, Macro)
Both Key Bus mode and Key Delegation mode are supported
FlexiPad Block
The Flexi Pad is used for creating and recalling memorised functions for easy operation
Macro / ShotBox direct execution, Macro editing
Snapshot / Wipe Snapshot / DME-Wipe Snapshot recall
- Power requirement : DC IN-A/B : DC 19.5 V
- Power consumption : DC 1.6 A
- Operating temperature : 5˚C to 40˚C (41˚F to 104˚F)
- Dimensions (W x H x D) : 912.0 mm x 292.2 mm x 87.9 mm
- Mass : Approx. 9.5 kg (20 lb 15 oz)
- LAN-A1 : RJ-45 (x1), 1000BASE-T
- LAN-A2 : RJ-45 (x1), 1000BASE-T
- LAN-B : RJ-45 (x1), 1000BASE-T
