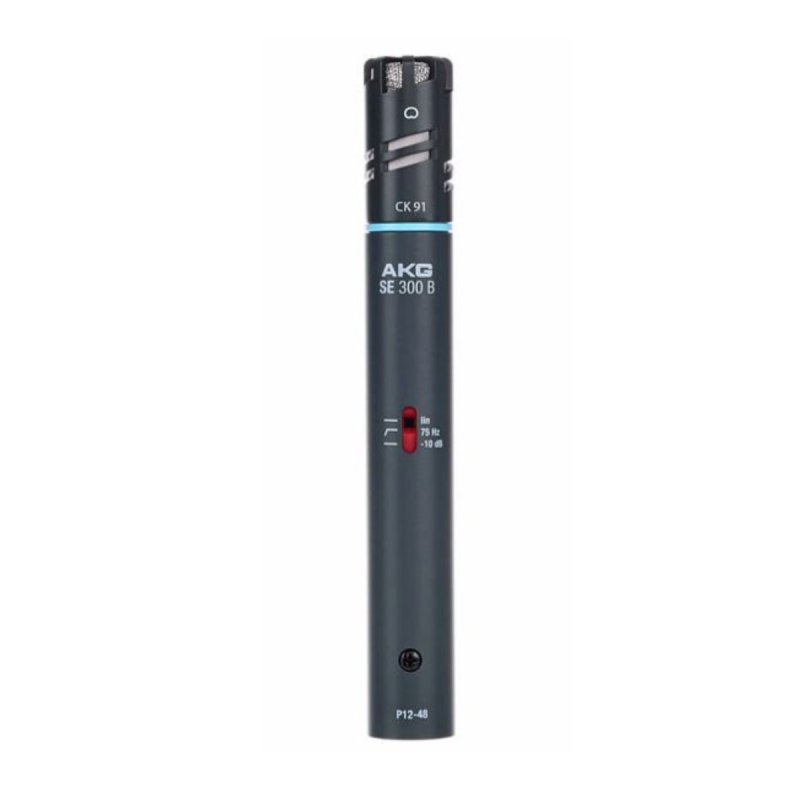

AKG Pack comprenant SE300B plus capsule cardioide CK91
Photo(s) non contractuelle(s)
zoom_out_map
chevron_left chevron_right

AKG Pack comprenant SE300B plus capsule cardioide CK91

2 years warranty

Product highlights
  • Low Frequency Attenuation
  • Blue Line series power supply
  • Output stage without transformer
  • Cardioid polar pattern
  • Flat frequency response


€550.80 (tax incl.) €459.00 (tax excl.)
Tax included
ou réglez en :
Paiement en deux fois Paiement en trois fois Paiement en quatre fois avec Paiement fraction avec Alma

Sélectionnez Paiement fraction avec Alma au moment du paiement

en Paiement en deux fois en Paiement en trois fois en Paiement en quatre fois
Aujourd'hui*  €  €  €
Dans 1 mois  €  €  €
Dans 2 mois  €  €
Dans 3 mois  €
Total TTC  €  €  €
refresh Sur Commande - Habituellement expédié entre 3 et 21 jours Le produit est en cours de réapprovisionnement et sera bientôt en stock.
Description

AKG Pack comprenant SE300B plus capsule cardioide CK91

In my box
  • AKG Pack including SE300B plus CK91 cardioid capsule

AKG Pack including SE300B plus CK91 cardioid capsule

The AKG SE-300B is a power supply and signal output stage for all AKG Blue Line series microphone capsules. The power supply is designed as the back-bone of the Blue Line series, allowing a variety of interchangeable capsules to be used as applications change.

The SE-300B is a lightweight, rugged unit with an output stage that preserves the integrity of the audio signal while providing a very low noise floor and high output gain. A preattenuation switch provides extra headroom and eliminates distortion caused by overload when reproducing excessively loud signals. A low frequency roll-off switch reduces low frequency noise caused by wind, ambiance, bad grounds etc. The SE-300B is powered with an external 9 to 52 V phantom power source.

Blue Line Series Power Supply

The SE-300B is designed for use with all AKG Blue Line series microphone capsules.

Transformerless Output Stage

Quiet noise-free signal at high output gain are a result of the transformerless output circuitry Incorporated in the SE-300B.

Pad Switch

A preattenuation pad switch enhances head room and prevents overload caused by excessively loud signals.

Low Frequency Roll-Off

A low frequency roll-off switch removes low frequency rumble and noise caused by wind, ambiance, etc.

From the AKG Blue Line series of modular microphone capsules, the AKG CK91 is a cardioid capsule with signal characteristics that allow the microphone to be used in a variety of applications. The miniature capsule features a flat wide frequency response of 20Hz to 20kHz allowing smooth accurate signal reproduction without coloration. The cardioid polar pattern is effective in eliminating noise and ambiance at the off-axis sections of the capsule. The result minimizes feed-back and allows the CK91 to be used to spot capture instruments and vocals for sound reinforcement and crucial recording. The CK91 is powered with the AKG SE-300B power supply.

Cardioid Polar Pattern

The cardioid polar pattern is effective in eliminating noise and ambiance at the off-axis sections of the capsule.

Flat Frequency Response

The miniature capsule features a flat wide frequency response of 20Hz to 20kHz allowing smooth accurate signal reproduction without coloration.

Technical sheet

AKG SE-300B Specs

  • Frequency Response : 20Hz to 20kHz
  • Pad : 10 dB, switchable
  • Filter Type : Low Frequency Roll-Off: 12 dB/octave at 75 Hz
  • Impedance : < 200 ohms
  • Recommended Load Impedance : > 1000 ohms
  • Connector : 3-pin XLR
  • Power : Current consumption: <2 mA
  • Power : Supply voltage: 9 to 52 V phantom power to DIN 45596
  • Dimensions : 0.7 x 4.3" (Diameter x Length)
  • Weight : 2.8oz

AKG CK91 Specs

  • Transducer : Condenser
  • Polar Pattern : Cardioid
  • Frequency Response : 20Hz to 20kHz
  • Dynamic Range (Typical) : not specified by manufacturer
  • Signal-to-Noise Ratio : 77dB
  • Maximum Input Sound Level : 132/142dB (for 1% THD)
  • Power Requirements : Supply voltage: through SE-300B
  • Power Requirements : Current consumption: through SE-300B
  • Output Impedance : not specified by manufacturer
  • Output Connectors : Interfaces with SE-300B Power Supply
  • Pad : -10dB located on SE-300B
  • Low Frequency Roll-Off : Low Frequency Roll-Off: 12 dB/octave at 75 Hz located on SE-300B
  • Dimensions : 0.7 x 1.4/2" (diameter x length)
  • Weight : 1.2 oz.

Data sheet
C391B
885038002635
