Allen & Heath Table de mixage ZEDi-8
1 year warranty
- 8x Channel Mixer/USB Interface
- 2x High-Impedance Guitar Inputs
- 2x Channels Conversion at 24-bit/96 kHz
- Flexible Signal Routing via USB
- 48V Phantom Power
Allen & Heath Table de mixage ZEDi-8
- Allen & Heath Table de mixage ZEDi-8
Allen & Heath Table de mixage ZEDi-8

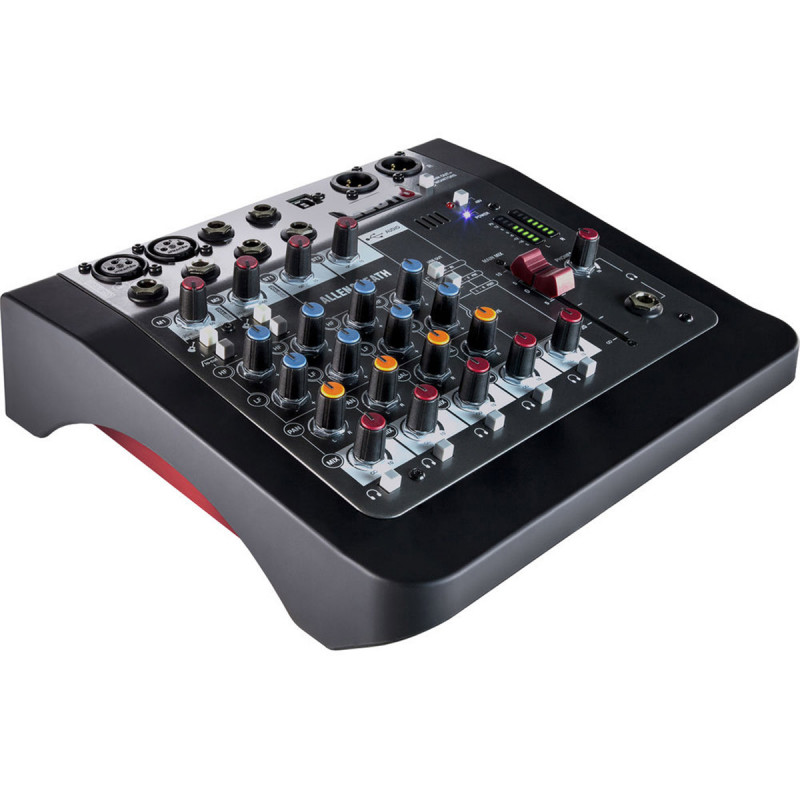

Designed to bring the signature Allen & Heath sensibility to a compact and portable frame, the ZEDi-8 is a four-channel mixer that doubles as a USB interface. On the mixer side, you get two XLR inputs, two line/instrument inputs, and two pairs of stereo line inputs. Utilize this unit's digital capabilities and you'll find yourself with two channels of conversion—analog-to-digital or vice-versa. Thus, you'll find the ZEDi-8 equally suited for live-mixing in small venues and for tracking instruments on the fly.
Should you choose use the unit as an interface, you'll find that it comes with Cubase LE, a digital audio workstation which enables you to record, sequence, and edit music, be it audio or MIDI.
In the analog realm, the ZEDi-8 is crafted with preamps modeled on the Allen & Heath GS2-R24. These channel strips aim to provide warmth, low noise, and a vast expanse of headroom. On-board EQs also come standard with the unit. Two channels feature a button that converts line-level signal into high-impedance jacks, meaning guitar players need not lug an extra DI box around should they wish to go direct into the board.
Turning your attention back to the digital side of things, you'll notice that a USB switch controls the routing of your USB output, enabling you to select how you route and separate the incoming analog signals into your DAW.
- Number of analog input channels: 6 (2 Mono / 2 Stereo)
- Number of microphone preamps: 2
- Analog output channels: 1 x main stereo output
- Analog output channels: 1 x stereo headphone output
- Faders: 5 x Channel Fader
- EQ: 2-band EQ input channels
- Filters: 2 x high pass
- Built-in effects: No
- Sampling rate: Up to 96 kHz
- Shallow: Up to 24-bit
- Analog outputs: 1 x 6.35mm TRS headphone output
- Analog outputs: 2 x 3-pin XLR balanced main output
- Phantom Power: Yes
- USB: 1 x USB Type-B
- USB I/O capability: 2 in / 2 out
- Rack Mountable: No
- Dimensions: 3.5 x 9.8 x 9.3"
- Mass: 3 pounds
